70mm 12 Blade Brushless EDF Duct Fan for RC 4S/6S Jet Aircraft Engine, 2200g Thrust Replacement(3400KV 80A ESC)

Description

• Power Data: 70mm 12 brushless blade design, 4S thrust 2200g, 6S thrust 2240g, providing stable output power
• Specification options: 4S 3400KV and 6S 2300KV two configurations, with ESC 80A/70A, suitable for all types of fixed-wing aircraft models
• Lightweight design: Made of carbon fiber composite materials, it is lightweight, reduces engine load and increases flight time.
• QUICK REPLACEMENT - Snap on installation, no tools required, full replacement in 3 seconds, quick maintenance between flights.
• Universal Fit: Compatible with common models, with clear positive and reverse propeller markings to avoid installation errors.

70mm Brushless EDF Duct Fan, 12 Blades, 4S 3400KV, 6S 2300KV, Thrust About 2200G, Suitable for Control Jet Aircraft, Control EDF Aircraft Model
Motor Specifications:
Number of lithium batteries: 4
Maximum Voltage: 16.8V
Maximum continuous current (amps)/60 seconds: 75A
Total power: 1260 W
Maximum pulling force: 1819g

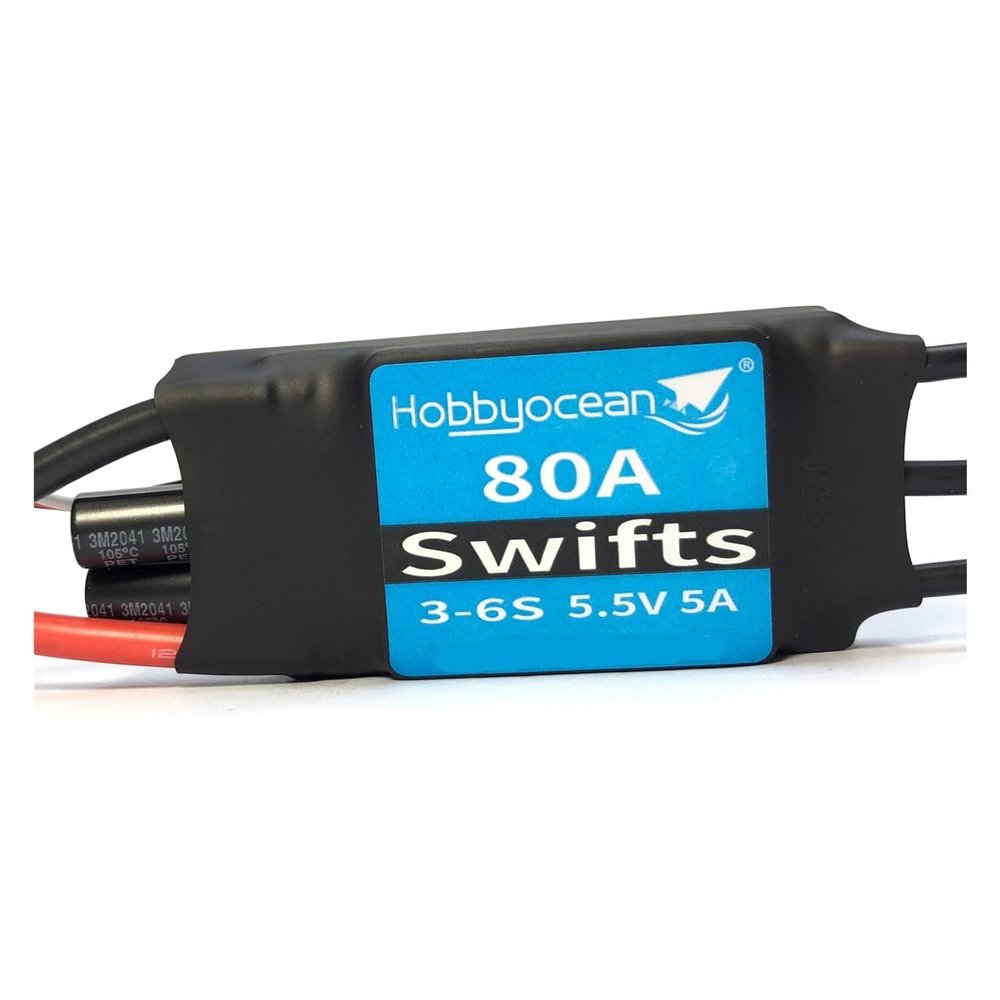

Recommended ESC: 80A
Recommended battery: 35C 4S 3500mAh (not included)
2300KV Motor Specification:
KV: 2300KV (6 lithium battery) optional
Number of lithium batteries: 6
Maximum voltage: 25.2V
Maximum continuous current (amperes)/60 seconds: 65A
Total power: 1638 watts
Maximum thrust: 2240 g
Recommended ESC: 70A
Recommended battery: 35C 6S 3500mAh (not included)
Quantity: 1 piece
Wheelbase: Screw
Size: 70 mm
Applicable models: Fixed-wing aircraft
Tools and Consumables: Assembly
All-wheel drive attributes: Engine
Upgrade Parts/Accessories: Frame
Control Parts & Accessories: Engine
