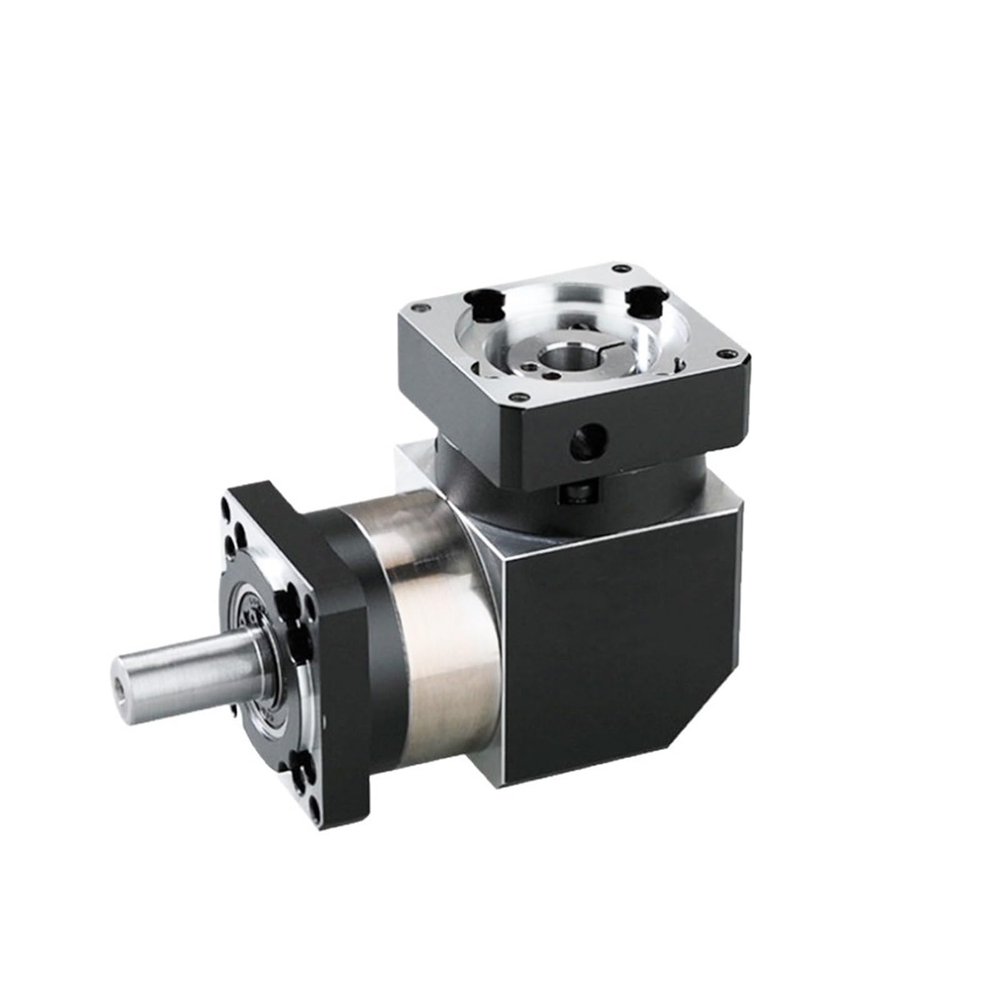

90 Degree Right Angle Planetary Gearbox Reduction Planetary Reducer Tooth Backlash 10Arcmin Transmission Ratio 3-100:1, Suitable for Industrial Robots(Speed Ratio 35,11mm--60 Servo)

Description

• Motor Drives

Motor Drives
Technical Parameters PVF060 PVF090 PVF120
Maximum radial torque N 240 450 1240
Maximum shaft torque N 220 430 1100
Torsional stiffness Nm/arcmin 1.8 4.85 11
Maximum input speed rpm 8000 6000 6000
Rated input speed rpm 4000 3500 3500
Noise dB 58 60 65
rebound
(arc minutes)
Phase 10
Phase 115
Maximum output torque Nm 1.5 times rated output torque
Instantaneous braking torque Nm 2 times rated output torque
Service life 20,000 hours
Protection grade IP65
Working temperature -10~+90
Full load efficiency% L195%, L292%
Parameter series ratio PVF060 PVF090 PVF120
Rated output torque (Nm) Level 1 (L1) 3:1 27 96 161
4:1 40 122 210
5:1 40 122 210
Stage 2 (L2) 15:1 27 96 161
20:1 40 122 210
25:1 40 122 210
30:1 27 96 161
35:1 40 122 210
40:1 40 122 210
50:1 40 122 210
70:1 34 95 170
100:1 16 56 86
Moment of inertia (Kg.cm2) Stage 1 (L1) 3:1 0.46 1.73 12.78
4:1 0.46 1.73 12.78
5:1 0.46 1.73 12.78
7:1 0.41 1.42 11.38
Stage 2 (L2) 15:1 0.44 1.49 12.18
20:1 0.44 1.49 12.18
25:1 0.44 1.49 12.18
30:1 0.44 1.49 12.18
35:1 0.44 1.49 12.18
40:1 0.44 1.49 12.18
50:1 0.34 1.25 11.48
70:1 0.34 1.25 11.48
100:1 0.34 1.25 11.48
Gear transmission: planetary gear
3:1-10:1 Recoil: 10 arc minutes
15:1-100:1 Recoil: 15 arc minutes
Speed ratio: 3:1-100:1
Flange size: 40mm-160mm
Protection level: IP65
