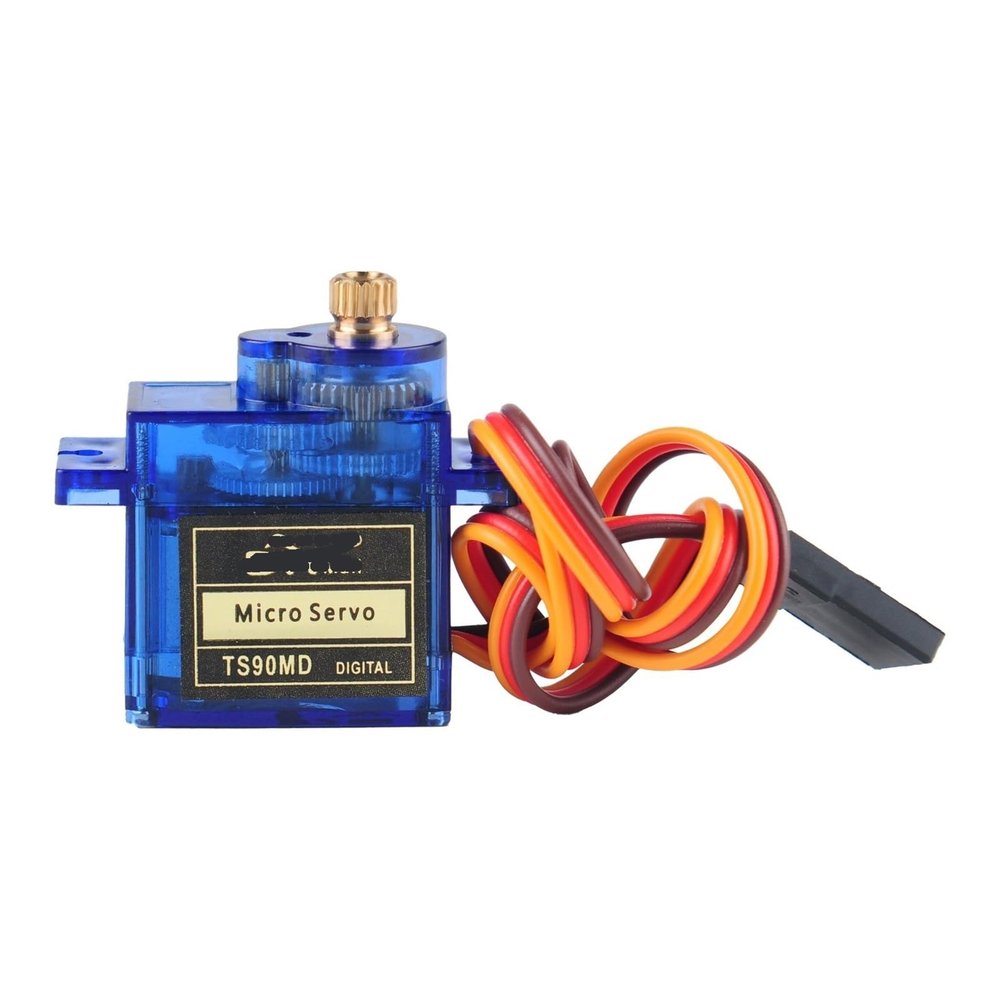

9g TS90MD Metal Gear Simulation Servo 90/180/270 Degree Angle Controllable Servo Motor Set(180 Degree)

Description

• Servo Gears

Servo Gears
Mechanical specifications
Dimensions: 22.4*12.5*22.8mm
Mechanism limit angle: 200sh 5
Output shaft: 20T Diameter: 4.9mm
Gear material: metal teeth
characteristics
Working voltage: 4.8V-6V
No-load speed: 0.1 1sec/60
No-load current: 220mA/6V
Stall torque: 2.2Kg-cm/6V
Locked rotor current: 800mA+10%
Quiescent current: 5mA-6mA
Control characteristics
Control signal: Pulse width modification
Control system type: Analog controller
Midpoint: 1500usec
Pulse width range: 5002500usec
Specification:
Storage temperature range: -30C to 80C
Operating temperature range: -25C to 70C
Humidity range: 65%10%
Size: 22.7*12.2*26.8
Gear Type: 5 Metal
Limit angle: 90/180/270/360
Bearing: No
Speaker gear spline: 20T Diameter: 4.8mm, Height: 4.3mm
Speaker type: plastic, POM
Shell: Engineering plastic (PBT)
Connecting wire: 250mm5mm
Motor: Carbon brush motor
Splashproof: No
Working voltage 4.8V 6.0V
Idle current 40mA 40mA
No-load speed 0.11 sec/60 0.09 sec/60
Operating current 200mA 300mA
Peak stall torque 1.6kg.cm 1.8kg.cm
Operating torque 1.2kg.cm/60 1.4kg.cm/60
Stall current: 580mA, 800mA
Command signal: Pulse width modification
Amplifier Type: Digital Controller
Pulse width range: 500-2500usec
Neutral position: 1500usec
Operating angle: 90/180/2703(500-2500usec)
Operating angle: 45/90/1353 (500-1500usec)
Operating angle: 45/90/1353 (2500-1500usec)
Dead band width: 5 microseconds
Rotation direction: counterclockwise (1000-2000usec)
Output:
Red line: positive +
Black line: negative pole -
Brown line: signal S
Package Includes:
1 X TS90MD 14g digital servo with metal gears
