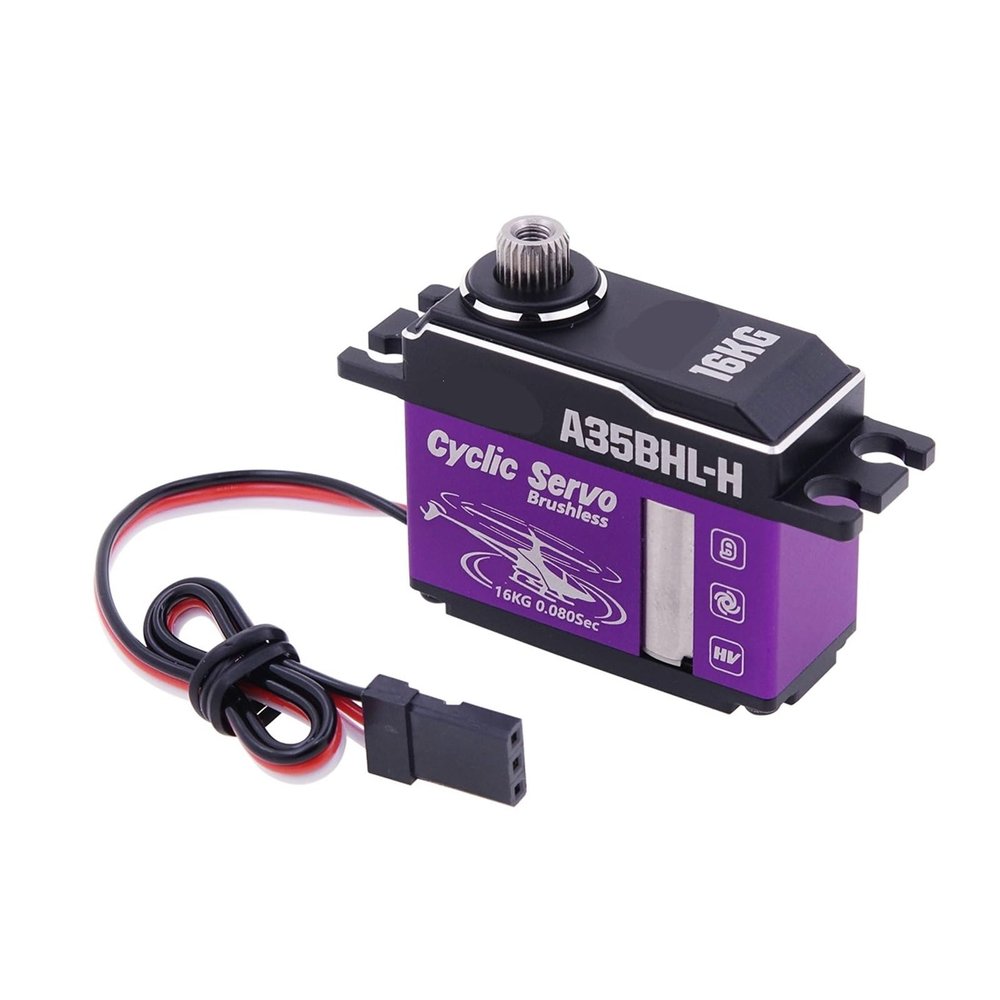

A35BHL-H A35BHM-H 16KG 0.08Sec 18.5KG 0.03Sec Steel Gear HV Brushless Conical Servo(A35BHL-H Cyclic)

Description

• Servo Gears

Servo Gears
Specification
A35BHL-H Cycle
Operating voltage: 4.8-8.4 V
Operation speed: 0.110 sec/60@6.0V
Operation speed: 0.090 sec/60@7.4V
Operation speed: 0.080 sec/60@8.4V
Stall Torque: 12 kg-cm (167 oz-in) @ 6.0V
Stall Torque: 15 kg-cm (208 oz-in) @ 7.4V
Stall Torque: 16 kg-cm (222 oz-in) @ 8.4V
Equipment: Steel
Motor: Brushless
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 45g
Connection line: JR 300 mm / 26AGW
A35BHM-H tail (narrow strip)
Operating voltage: 4.8-8.4 V
Operation speed: 0.080 sec/60@6.0V
Operation speed: 0.072 sec/60@7.4V
Operation speed: 0.065 sec/60@8.4V
Stall Torque: 6.5 kg-cm (90 oz-in) @ 6.0V
Stall Torque: 7.5 kg-cm (104 oz-in) @ 7.4V
Stall Torque: 8.5 kg-cm (118 oz-in) @ 8.4V
Equipment:
Motor: BLS
Dimensions: 35.5*15*29.2 mm (1.39 x 0.59 x 1.14 in)
Weight: 41 g
Connecting wire: JR 300 mm / 22AGW
