Aluminum Alloy LCG Chassis Kit Frame DIY Servo Rescue Crane Arm for 1/10 RC Rigs Crawler Capra SCX10 II Axle Comp Builds Upgrade (14-Lifting Crane Arm)

Description

• Multi-CompatibilityThis chassis kit has multi-functional compatibility for a wide range of 1/10 scale RC crawlers and trailers, such as SCX10, TRX4, Capra and other similar models. It is ideal for DIY upgrade to customize the RC car according to your needs.
• Specifications Chassis kit: Wheelbase 313 mm (adjustable), Crossmember length: 413 mm, Width of base plate, front motor mount, servo mount and carbon tube: 67 mm, Output ratio of front of splitter box: 1.94:1 (excluding 56T big teeth), Output ratio of rear of splitter box: 2.65:1 (excluding 56T big teeth); Lifting arm: Dimensions: 135*67*112 mm (lowest mounting position) (adjustable mounting angle/position). (lowest mounting position) (adjustable mounting angle/height); tiller + winch: size: 40 * 20.2 * 41 mm (excluding mounting side lugs and top axle teeth).
• High Quality MaterialThis chassis kit is precision machined from aluminum alloy with silver purple black and red anodized finish, with colorful carbon fiber support tubes and sai steel base plate side treads for lightweight and durability; it can enhance the appearance of your 1/10 RC tracked vehicle while providing excellent strength and durability. High-quality materials ensure that the strut kit will stand up to the rigors of off-road adventures.
• Package Contents Includes basic chassis accessories (beam, 5 colorful carbon fiber support tubes, front and rear bumpers, cable guide, trailer hitch, dual steering brackets, Panhard bracket, transfer case, front motor mount, transmission driveshaft, 2 cuttable long driveshafts, Delrin base plate, Delrin side steps and elastic hitch housing fixing rope).
• After-sales ServiceIf you have any questions or concerns about our products, we at Clxdq-718 are always ready to help you to ensure you have a smooth and enjoyable DIY upgrade experience.

Aluminum Alloy LCG Chassis Kit Frame With Double Servo Support for 1/10 RC Rigs Crawler Capra SCX10 II LCG DIY Lifting Crane Arm
Description:
Aluminum alloy precision machining, silver purple black red anodizing, paired with colored carbon fiber support pipes and Sai steel bottom plate side pedals, lightweight and durable;
Includes basic chassis accessories (beam, 5 colored carbon fiber support tubes, front and rear bumpers, cable guides, trailer hooks, dual steering mounts, Panhard mounts, transfer box, front motor mount, gearbox drive shaft, 2 cuttable long drive shafts, Delrin bottom plate, Delrin side pedals, and an elastic hook car shell fixing rope)
Specifications:
Chassis kit
Materials: aluminum alloy, stainless steel, Saigang
Usage scenario: Self assembling climbing frame
Wheelbase: 313mm (adjustable)
Beam length: 413mm
Bottom plate, front motor seat, servo seat, and carbon tube width: 67mm
Transfer case front output ratio: 1.94:1 (excluding 56T large teeth)
Transfer case rear output ratio: 2.65:1 (excluding 56T large teeth)
Colors: purple, black, silver, red
Frame weight: 602g
Loose shipment, buyer needs to assemble it themselves

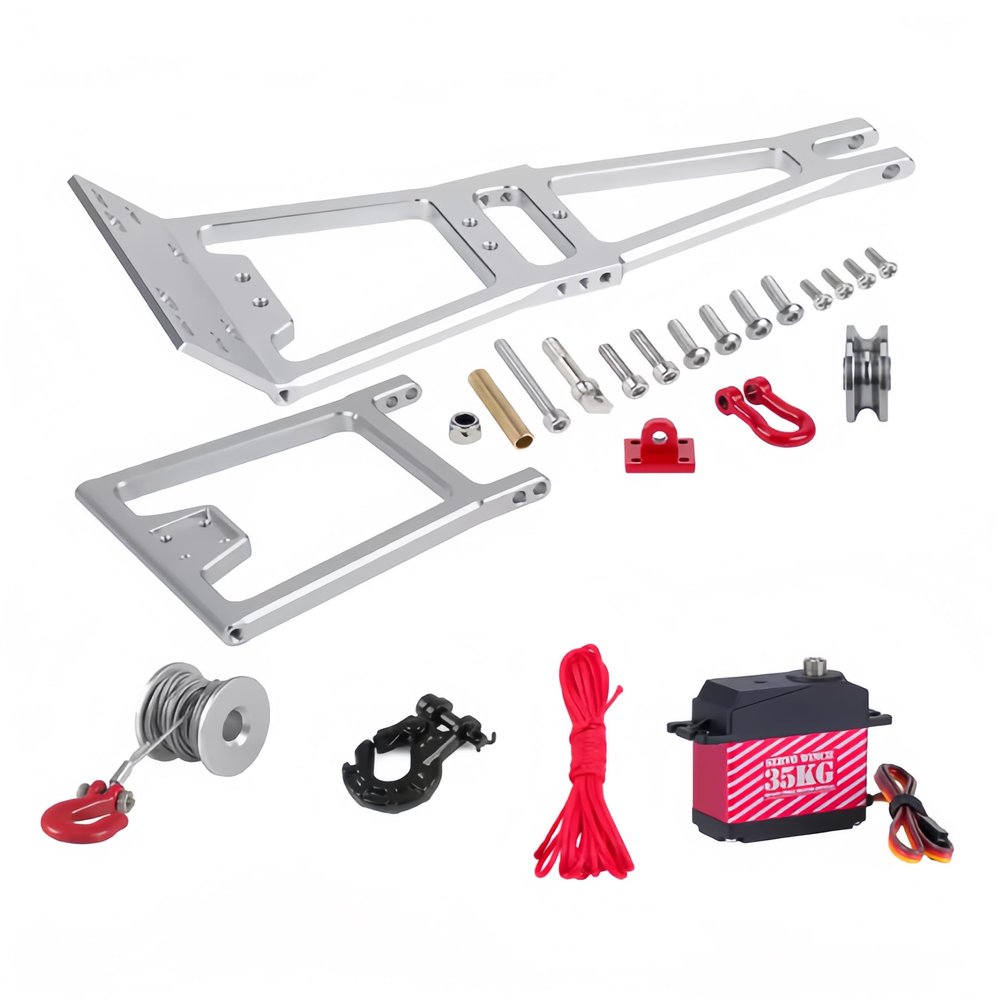

Lifting Crane Arm
Material: Aluminum alloy (main frame), stainless steel (fixed pulley/silver screw), copper (sleeve)
Size: 135 * 67 * 112mm (lowest installation position) (adjustable installation angle/height)
Color: Black, Silver
Weight: 104g
Servo+Winch Wheel
Product name: 35KG Servo
Materials: plastic, aluminum alloy, alloy steel, electronic components
Motor: Core Motor
Output teeth: 25T
Voltage range: 4.8V-8.4V
800-2200us angle: 360
Size: 40 * 20.2 * 41mm (excluding installation side ears and top shaft teeth)
Servo line: JR, 300mm
Weight: 65g
Waterproof performance: IP66 (dustproof and splash proof)
Stop rotating: 1430us-1530us
From slow to fast/counterclockwise: 1530us-2200us
From slow to fast/clockwise: 800us-1430us
Installation wiring/control method: The third channel of the receiver is powered on, and the third channel switch of the remote control controls the forward and reverse continuous rotation
Product name: Winch Wheel
Materials: Aluminium
Standard Winch Spool Teeth:25T
Steel Rope Length: 180cm
Wheel size: 20*16mm
Weight: 12g
Product name:Winch tow rope/Trailer Hook
Material: Polyethylene fiber/Metal
Color: Red, Black, Blue, Grey
Diameter: 1mm
Length: 2m(78.74in)
