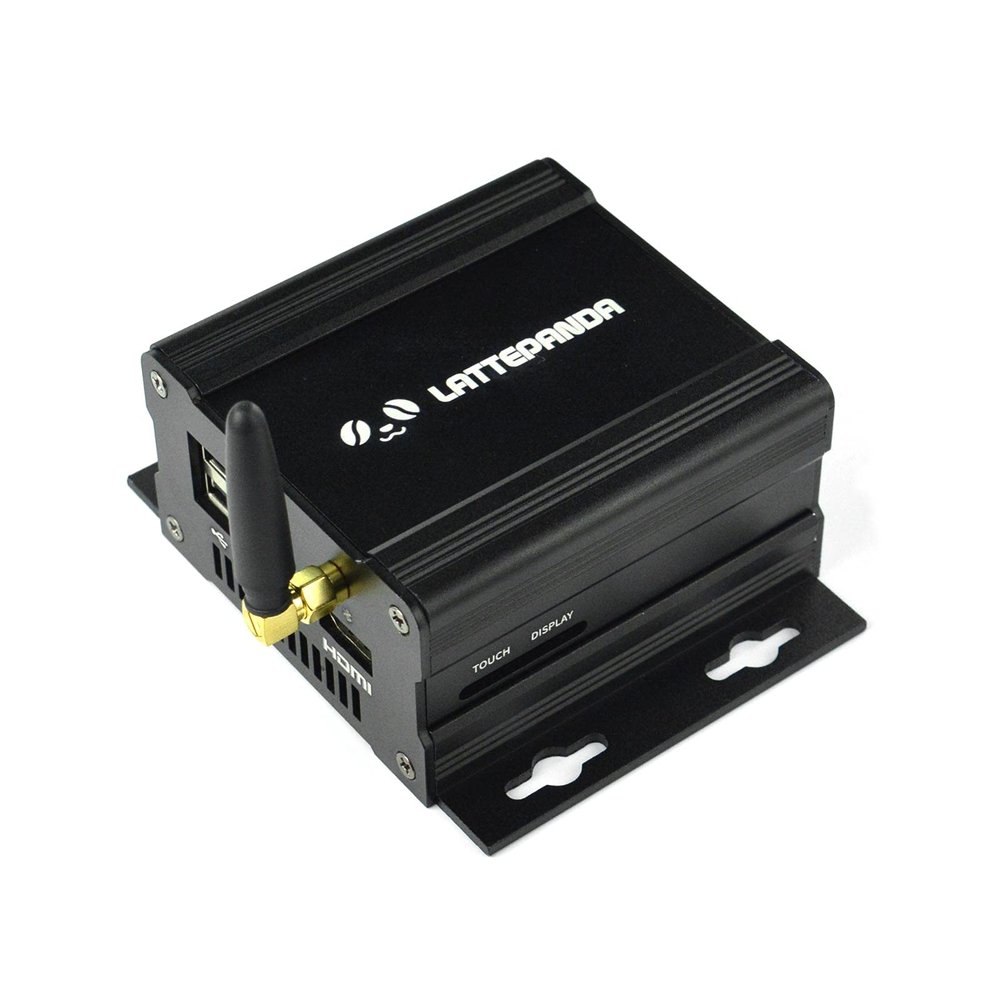

Aluminum Heatsink Case for LattePanda V1

Description

• This Aluminum Heatsink Case is an aluminum alloy enclosure made for LattePanda V1 board. All-metal material with all black anodizing and sand blasting brings the advantages of hardness and wear resistance, and make the case looks more elegance sedate.
• A set of external enhancement antenna is provided inside the box to introduce external Wi Fi and Bluetooth signals into the box. The wing shaped fixing plate enables the shell to be placed on the table or fixed on the wall stable.
• The case is also include with a heat dissipation module made by a complete aluminum alloy at the bottom. The 12mm long fins on the heatsink can take away the heat quickly. After testing, the main board can be operated under full loading in 24 environment, so that the main board will not run slow due to overheating.
• Meanwhile, learn from the design of modularization, we make the case easy to customize. Using the different length and width of the surface panels made by yourself, it can easily accommodate the official or third-party expansion shield.
• To convenient to customization, LP team also open the design drawing of the surface panel to users. If you have customized cooperation and batch demand, please contact with our tech-support team.

Aluminum Heatsink Case for LattePanda V1

Features
Passive heatsink
All-metal material
External antenna
Wall-mounted

Applications
Smart TV Box
Smart Home Central Console
Personal Workbench
Factory Data Collection Terminal

Specification
Dimensions: 90 mm * 116.5 (excluding wing piece: 86) mm * 48.5mm
Material: Aluminum alloy
Weight: 450g
Thermal Pad: 6 W/m.K
Antenna frequency: 2.4GHz
Compatible motherboard: LattePanda V1

Shipping List
Case parts x1
Heat dissipation module x1
Antenna x1
IPEX to SMA adapter x1
Thermal Pad x2
