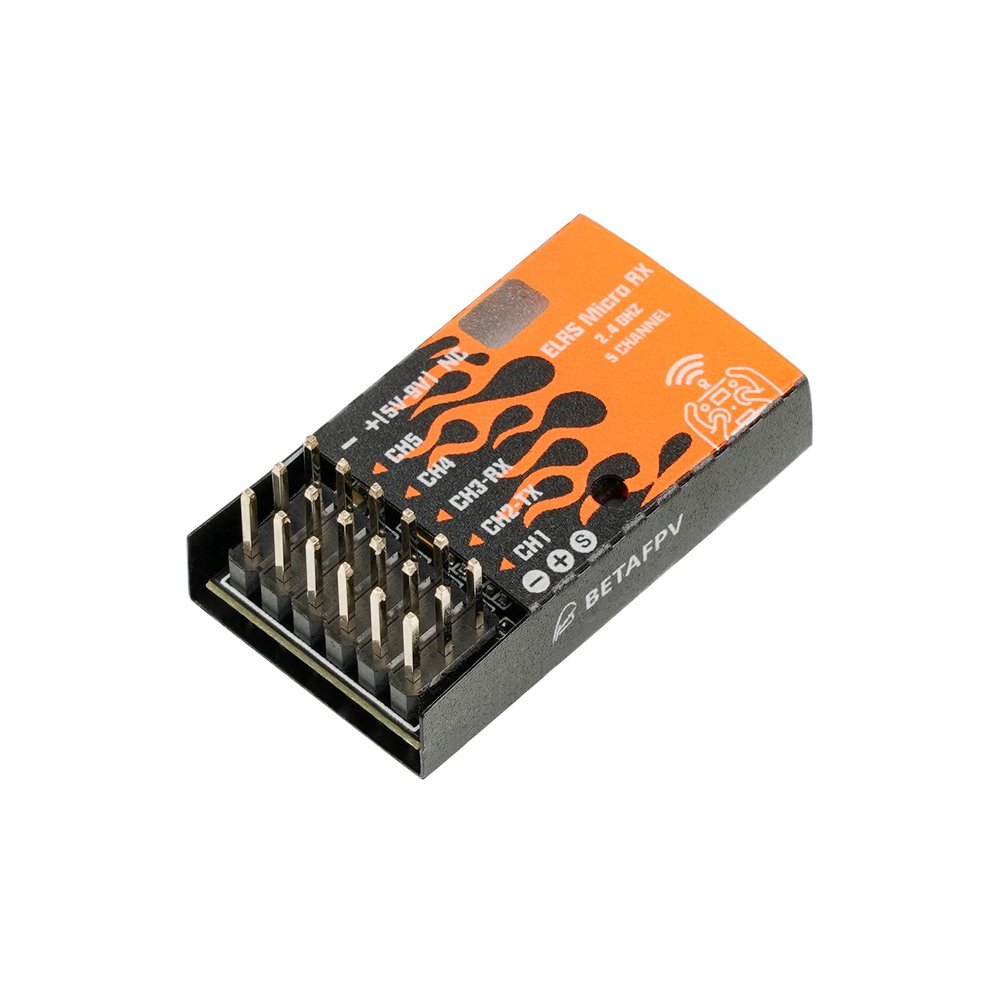

BETAFPV ExpressLRS Micro Receiver Support 5 CH PWM Outputs Failsafe Function with IPEX MHF T Antenna Compatible for Multirotors Fixed-Wing Helicopters RC Cars Boats Easy to Install Plug and Play

Description

• PWM OutputBETAFPV ELRS Micro receiver is the first ELRS receiver with PWM output on BETAFPV. Supports 5 channels PWM outputs. It also supports flash CRSF output firmware, in this case CH2 corresponds to TX and CH3 corresponds to RX
• ApplicationELRS micro receiver adapts for multiple types of models like fixed-wing, helicopters, RC cars, boats and etc.
• Failsafe FunctionWhen the connection or signal is lost between the radio transmitter and receiver, the failsafe function will adjust all the channels to the failsafe values set by the users, maximum keep safety and prevent from flying away. It's necessary to set up failsafe values properly if you are not using a flight controller, such as RC fixed-wing
• Weight&SizeWeighing about 4.5g with an antenna and with the sizes of 19mm*32mm*9mm (without antenna). It means that an FPV drone can not afford to carry.
• Plug &PlayWith the plug-and-play connect ports, micro receiver is very easy to use and does not need to solder

Binding Procedure
The Micro receiver comes with officially major release V3.0.0 protocol and has not been set for a Binding Phrase. So please make sure the TX module works on officially major release V3.0.0 protocol and no Binding Phrase has been set beforehand.

Enter binding mode by plugging in and unplugging the Micro receiver three times;
Make sure the LED is on double flashing, this indicates the Micro receiver is in bind mode;
Make sure the TX module or radio transmitter also enters the binding mode, which sends out a binding pulse;
When the LED light is solid, it indicates that the devices are successfully bound.
Note: once the devices have been successfully bound, the receiver will store the binding information. There would be no need for re-bind on the later use as the devices would be connected automatically.

Note: If you reflash the firmware of the Micro receiver with your own Binding Phrase, please make sure the TX module has the same Binding Phrase to perform an auto bind.

Specification
Item: BETAFPV ELRS Micro Receiver
Weight: 4.5g (with antenna)
Antenna: IPEX MHF + T antenna (recommend 80mm Dipole T Antenna)
PWM channel: 5 channels
Serial output protocol: PWM or CRSF
Size: 19mm*32mm*9mm (without antenna)
MCU: ESP8285/SX1280/SX1281
Telemetry power: 12.5dbm/17mW
Frequency bands: 2.4GHz ISM
Input voltage: 5V~9V DC @ "+" pad
Default firmware version: ExpressLRS V3.0
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

Package
1 * ELRS Micro Receiver
1 * BETAFPV 80mm T antenna
