Compatible For RadioMaster RP1 RP2 RP3 V2 ExpressLRS 2.4Ghz Nano Receiver Fit TX16S TX12 ZORRO ELRS RC Transmitter(RP1 V2)

Description

• For RC model lovers who build and debug remote control aircraft systems with ELRS signal connection modules.
• Designed for outdoor drone flight and indoor model assembling scenes to support stable signal linkage operation.
• Relieve unstable signal linkage issues when pairing remote control equipment with miniature receiving modules.
• Suitable for signal connection configuration of multi-type remote control equipment in model aviation activities.
• Adopt nano size layout to save installation space while matching 2.4Ghz signal transmission protocol standards.

Specifications

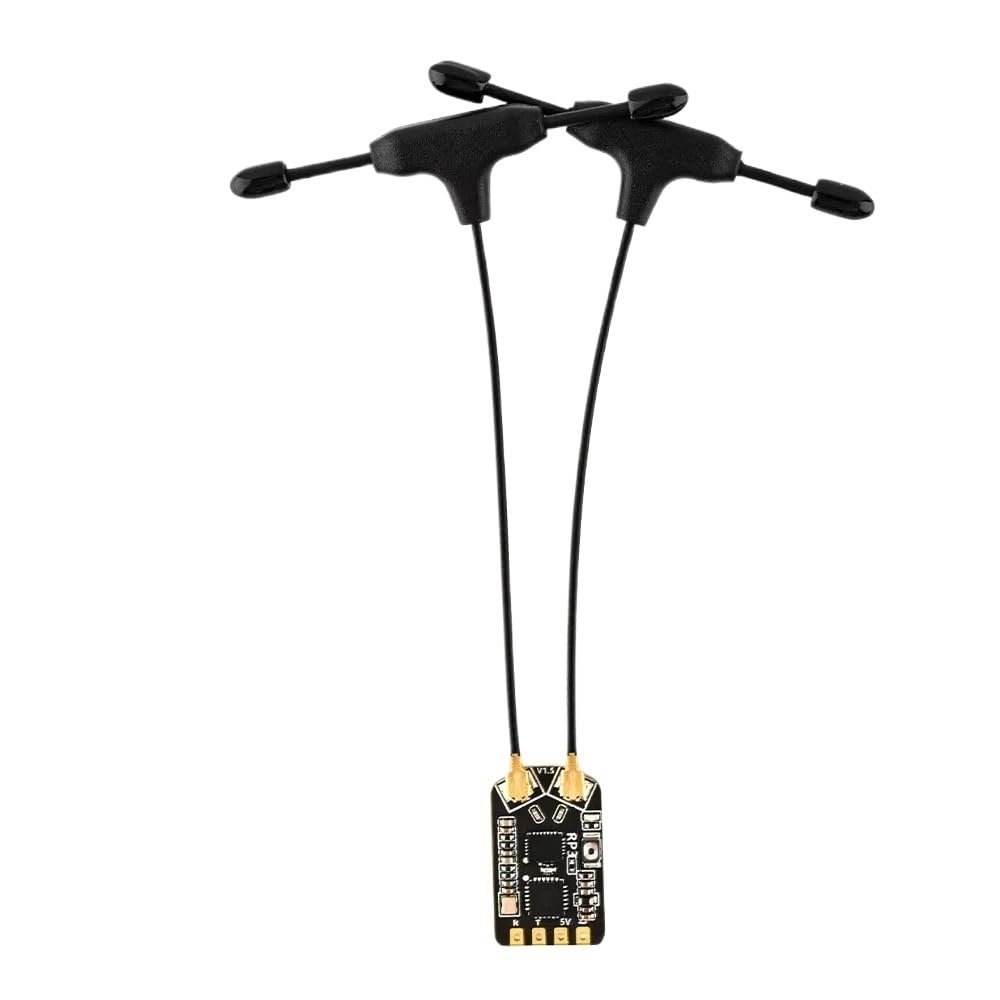

Item: RP3 Diversity Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1280IMLTRT
Telemetry RF power: max 100mw
Antenna: 65mm 2.4ghz T Antenna x 2
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 4.6g (Including two antenna)
Dimension: 22mm*13mm*4mm
Firmware Version: ExpressLRS v3.0 pre-installed
RP3 Key Features
OptimisedPCBdesignfor betterforheatdissipation.
LNA for better Receiver range.
PA for better telemetry range.
Antenna Diversity for improved signal stability and range.
Specification
Item: RP1 Nano ExpressLRS 2.4ghz Receiver
Type: ISM
Antenna: 65mm 2.4ghz T Antenna
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 2.2g (Including antenna)
Dimension: 13mm*11mm*3mm
Bus interface: CRSF
==========
High-concerned chemical : None
Is Electric : No Battery
Is it battery/power supply : N
Is it charger/adapter : N
Is Batteries Included : No
For Vehicle Type : Airplanes
RC Parts & Accs : RECEIVERS
Material : EVA
Use : Vehicles & Remote Control Toys
