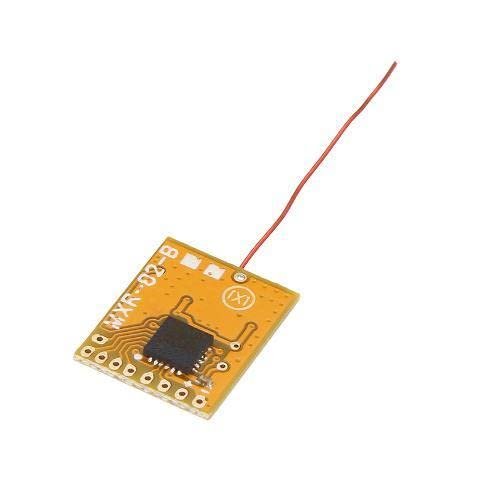

DasMikro DSK-143 FUTABA S-FHSS Micro 7CH Surface Receiver

Description

• mpn_DSK-143, parttype_Mini-ZReceiver, product_rcs, protocol_S-FHSS, SHIPPING_GROUPS_envelope, type_RCS-MZ-DAS

DasMikro DSK-143 FUTABA S-FHSS MICRO 7CH SURFACE RECEIVER

DasMikro FUTABA SFHSS 7CH 2.4Ghz RC Micro Receiver With PPM Output

Description:

Brand: DasMikro
Item Name: FUTABA SFHSS 7CH Micro RC Receiver
Channels: 7 channels (8 channels PPM)
Receiving Sensitivity: -99dBm
Frequency Range: 2.4-2.48GHz
Power: 3.7-5V DC
Weight: 0.6g
Antenna Length: 30mm
Size: 15mm*12mm*2.5mm
Color: Yellow

Signal Output:

CH1-CH7 output normal PWM signal
When CH5 is connected to GND, CH2 output PPM signal (8 channels)

Bind and Failsafe:

Power on your transmitter and receiver. Adjust transmitter each channel to the exact position you want to have in failsafe mode. Transmitter set to pair mode. Receiver led should be on. Long press the pair button. After around 2 seconds the LED will turn to fast flashing first then turn to on status again. Now the pairing is done and the failsafe data is saved. Power off the transmitter and receiver then power on again then the receiver will work.
