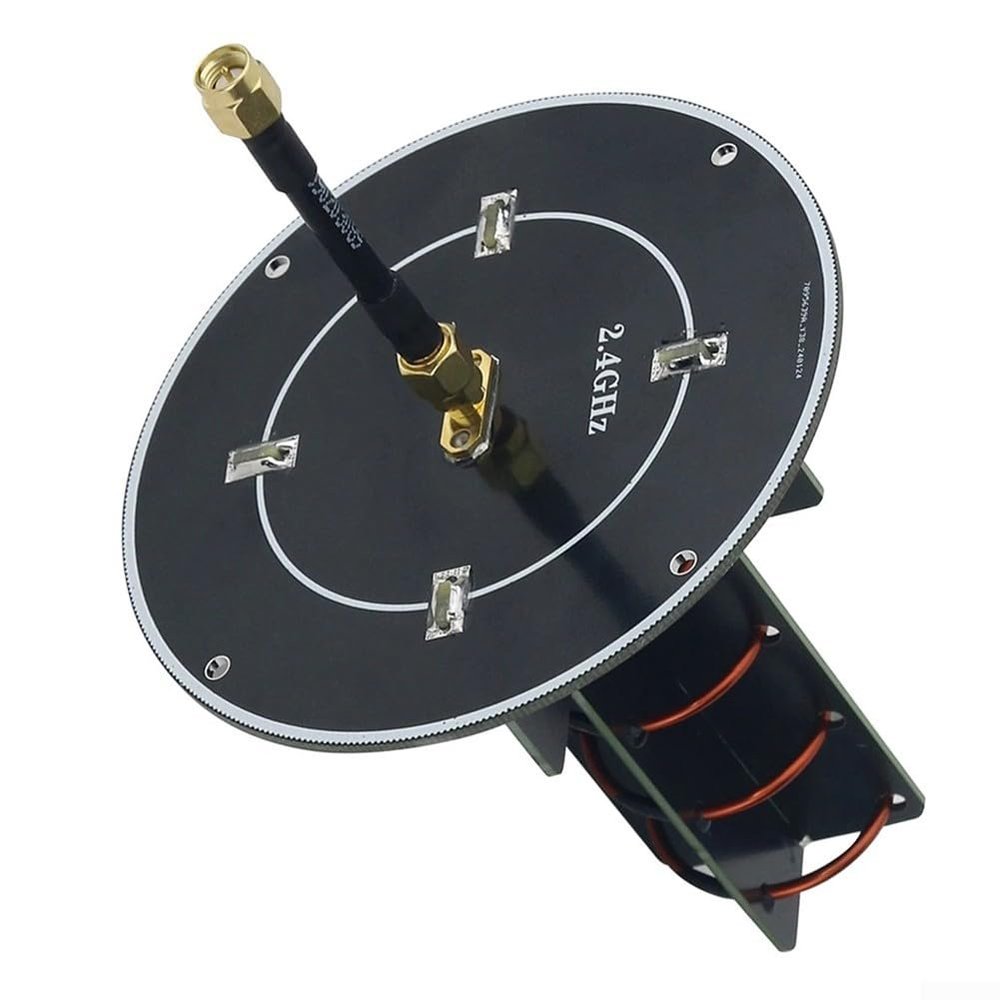

Directional Antenna 13dBi High Gain Left-Hand Circular Polarized Spiral Design with 50 Narrow Radiation Angle for Long-Range for FPV Remote Control and 2.3-2.65GHz Video Transmission

Description

• [HIGH GAIN PERFORMANCE] This 4GHz directional antenna boasts a 13dBi gain, optimal performance for long-distance communication, for FPV remote control applications.
• [NARROW RADIATION ANGLE] With a focused radiation angle of 50, this antenna minimizes and maximizes signal strength, making it perfect for precise alignment in distance communication setups.
• [CIRCULAR POLARIZATION for ADVANTAGE] The antenna features superior circular polarization with an for axial ratio maintained within 1dB, providing enhanced reliability over short-range antennas.
• [ METAL CONSTRUCTION] Made from robust metal materials, this antenna is designed for longevity and durability, making it suitable for various outdoor environments.

Features:
* This antenna has high gain and a narrow directional radiation angle, making it suitable for long-distance communication. Short-range communication requires alignment between the transmitting and receiving antennas; deviations from the radiation range will prevent communication.
* Suitable for long-range for FPV remote control.
* This antenna inherently offers an axial ratio superior to short-range antennas. By winding the antenna according to a reliable empirical formula, the circular polarization axial ratio can be kept within 1dB.

Specifications:
Name: Antenna
Material: Metal
Color: Black
Size: 100mm 100mm
for frequency Bandwidth: 2.3GHz - 2.65GHz
Polarization: Circularly Polarized
Impedance: 50ohm
Gain: 13dBi
Radiation Angle: 50
SWR: <1.2 ( - 2.5GHz)
Maximum Power Handling: 50W
Connector Type: RP-SMA-J
Weight: 78g

Package Contents:
1 x Antenna
