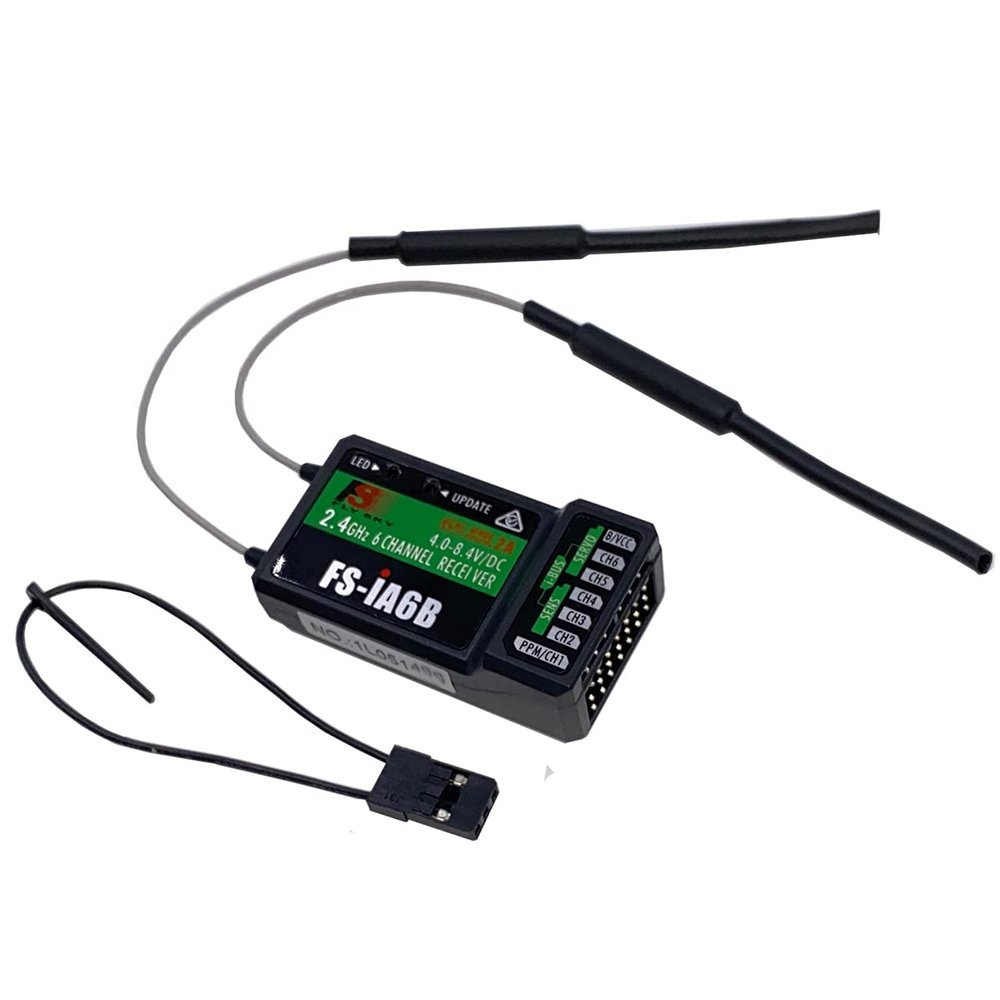

DTXMX Flysky Receiver FS-iA6B 2.4G AFHDS 2A 6Channels Support PWM/PPM/i-Bus Output Compatible Flysky FS-i6 FS-i6X FS-i6S and i10 RC Radio Transmitter

Description

• It is reliable, operates with 2.4 GHz AFHDS 2A signal, safe and steady and does not interfere with.
• Support PPM output, single wire connection flight control, with iBus interface, scalable channel.
• Better compatibility, it can be compatible for FS-i4, FS-i6, FS-i6X,FS-i6S,FS-i10 variety of transmitters, reduce your trouble.
• 2.4G mode is an improved version of the second generation digital automatic FM system with six channels to provide better signal.
• Applicable to aircraft / glider / helicopter, with I-Bus interface and data acquisition interface.

How to bind with FLYSKY transmitter(fs-i6,fs-i6x)?
1, Connect the supplied bind cable to the B/VCC port on the receiver.
2, Insert power into any other port.
3, Hold the "BIND KEY" while powering on the transmitter to enter bind mode.
4, Remove the power and bind cable from the receiver. Then connect the power cable to the B/VCC port.
5, Check the servos' operation. If anything does not work as expected, restart this procedure from the beginning.

FS-IA6B Specification:
Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
brand Width Number: 140
Transmitting Power: 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-8.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
i-Bus /PPM/PWM Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter

Package Included:
1x Flysky fs-ia6b receiver
1x Bind plug
