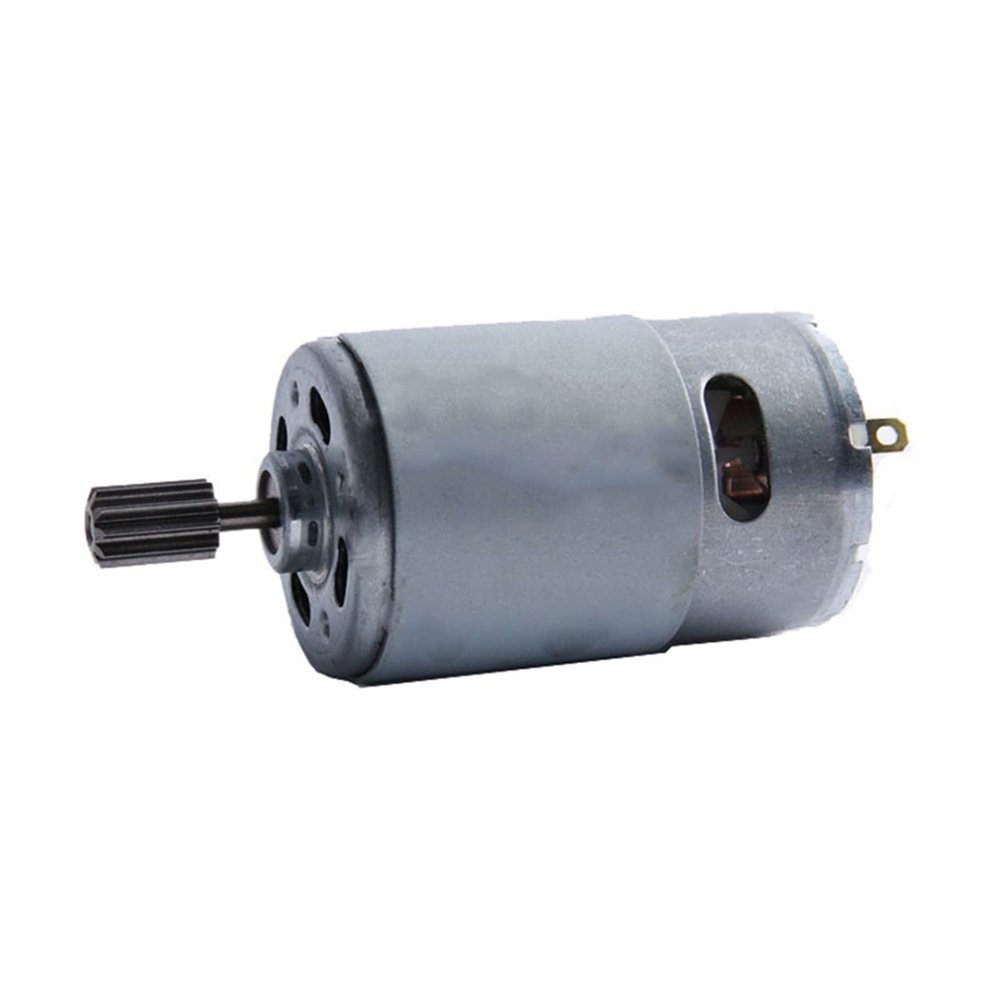

ELLANA Electric Replace 1PCS Electric Toy Stroller Car Motor Ride On Car Motorcycle Motor Electric Drill Motor 6V 12V 380 390 540 550 570 DC Motor Gearbox Ride (Size : RS550 12V-12000RPM)

Description

• Voltage: 6V 12V
• RS380 RS390 Motor: 12 Teeth, 9.5mm Diameter, 8mm Height
• RS540 RS550 RS570: 10 Teeth, 8.5mm Diameter, 13mm Height
• High moment of force, strong power, stable rotating speed.
• Compact size and lightweight, low noise, and stable performance.

RS380 RS390 Motor: 12 Teeth, 9.5mm Diameter, 8mm Height
RS540 RS550 RS570: 10 Teeth, 8.5mm Diameter, 13mm Height

RS380 Speed: 6V 5000RPM, 6V 13000RPM, 6V 14000RPM, 6V 15000RPM, 12V 5000RPM, 12V 15000RPM, 12V 20000RPM

RS390 Speed: 6V 14000RPM, 6V 16000RPM, 6V 18000RPM, 12V 12000RPM, 12V 14000RPM, 12V 16000RPM, 12V 20000RPM

RS550 Speed: 6V 8000RPM, 6V 10000RPM, 6V 11000RPM, 6V 12000RPM, 6V 14000RPM, 6V 18000RPM, 6V 20000RPM, 12V
8000RPM, 12V 9000RPM, 12V 10000RPM, 12V 12000RPM, 12V 15000RPM, 12V 18000RPM, 12V 23000RPM, 12V 30000RPM, 24V 18000RPM

RS540 Speed: 6V 12V

RS570 Speed: 6V 12000RPM, 6V 15000RPM, 12V 15000RPM, 12V 35000RPM
The lower the speed, the greater the force and the lower the sound; On the contrary, the higher the speed, the smaller the power, the louder the noise and the faster the running.

RS380 Motor Size
Motor Diameter: about 27.5mm
Motor Body Length: about 38mm
Motor Total Length: 57mm (ref)
Output Shaft Diameter: about 2.3mm
Screw Mounting Hole Distance: 16mm

RS390 Motor Size
Motor Diameter: about 27.5mm
Motor Body Length: about 46mm
Motor Total Length: 65mm (ref)
Output Shaft Diameter: about 2.3mm
Screw Mounting Hole Distance: 16mm

RS550 Motor Size
Motor Diameter: about 37.5mm
Motor Body Length: about 57mm
Motor Total Length: 85mm (ref)
Output Shaft Diameter: about 3.12mm
Screw Mounting Hole Distance: 25mm

RS540 Motor Size
Motor Diameter: about 37.5mm
Motor Body Length: about 50mm
Output Shaft Diameter: about 3.12mm
Screw Mounting Hole Distance: 25mm

RS570 Motor Size
Motor Diameter: about 37.5mm
Motor Body Length: about 65mm
Motor Total Length: 92mm (ref)
Output Shaft Diameter: about 3.12mm
Screw Mounting Hole Distance: 25mm
