ELRS NI Receiver EPW5 2.4G Compatible With ExpressLRS Nano Long Range Receiver Compatible With ES24TX Series RC Airplane Long Range LR4 LR7(ELRS MINI 2 RECEIVER)

Description

• Compatibility: Designed specifically Compatible With ELRS NI Receiver EPW5 2.4G Compatible With integration.
• Range: Optimized Compatible With long-range performance, ideal Compatible With extended control distances in RC applications.
• Efficiency: Utilizes advanced technology to maximize stability and minimize interference.
• Versatility: Suitable Compatible With various models including RC airplanes and drones, enhancing your flying experience.
• Performance: Achieves reliable communication Compatible With the ES24TX Series, ensuring responsive control in the air.
• Installation: User-friendly design allows Compatible With easy setup and quick modifications to your setup.
• Durability: Built to withstand the demands of outdoor use, providing consistent performance in diverse conditions.

CYCLONE series receivers utilize the ExpressLRS open-source architecture and are available in three types of receiver modules, all operating on the ESP8285 MCU. The firmware can be upgraded via WiFi, allowing Compatible With user-friendly updates. Once powered on and with the remote control turned off, the ExpressLRS can be found as a hotspot after 60 seconds. Connect to this hotspot using a computer or mobile device with the password "expresslrs," and then visit 10.0.0.1 to upload the receiver firmware.

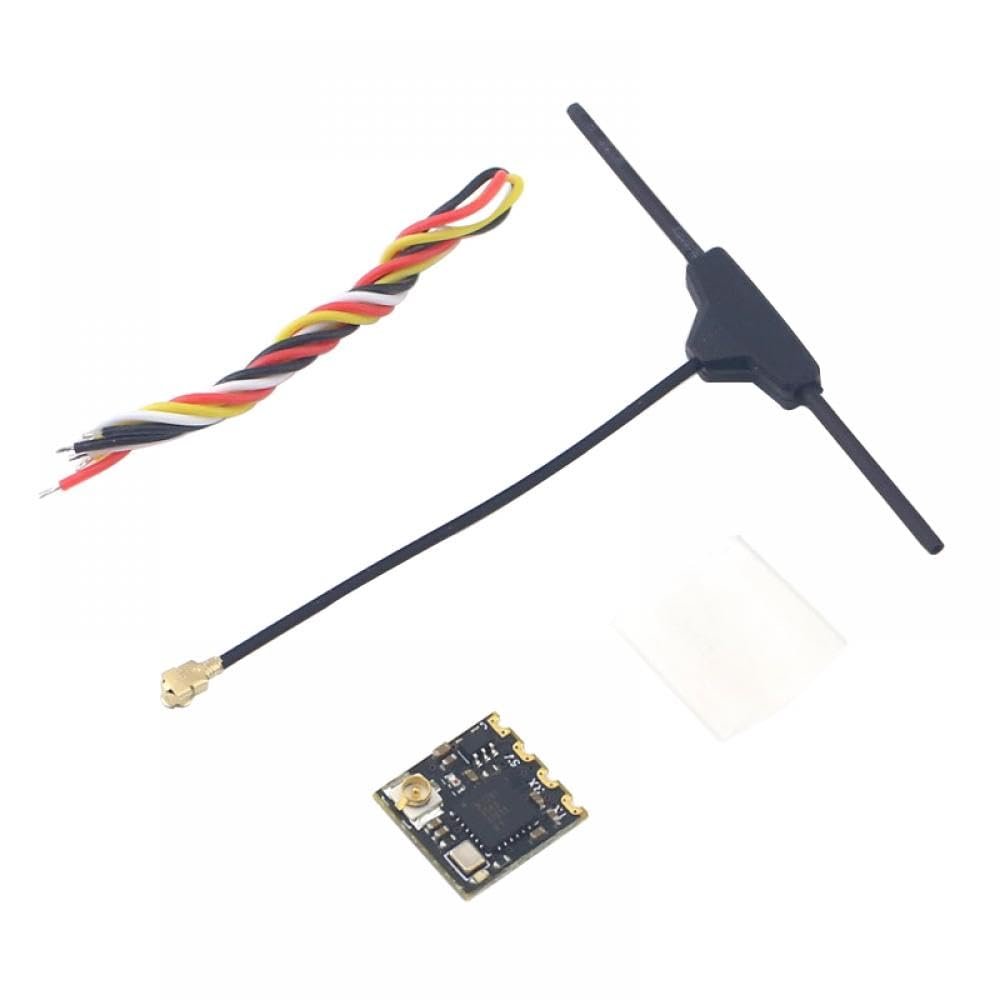

The Nano 2400RX receiver is equipped with a power amplifier (PA) and low noise amplifier (LNA), providing a telemetry output of 100mW and improved sensitivity at longer distances. It comes with an IPEX Gen 1 base and an external dipole T-type , customized and tested Compatible With quality and durability. These receivers are designed Compatible With low latency and refresh rates, making them suitable Compatible With competition and remote applications. They are ultra-lightweight and compact.
The ELRS NI 1 receiver does not have a PA or LNA, resulting in a telemetry power of 17mW, the same as the RF chip (SX1280). It utilizes a -efficiency pagoda ceramic and operates effectively in limited space.
The ELRS NI 2 receiver also lacks a PA and LNA, with a telemetry output matching the SX1280s 17mW, and features an IPEX 1st generation base with a customized dipole Sub-T that is lightweight and .
Specifications:
ELRS NI 1
- Type: ISM
- ESP8285 processor
- SMD 2.4GHz Chip Ceramic - Frequency Range: 2400 MHz to 2500 MHz
- Receiving refresh rate: 500Hz (upper limit), 25Hz (lower limit)
- Working voltage: 5V
- Weight: 0.44g
- Size: 10mm x 10mm x 5mm
- Working Protocol: CRSF (Betaflight)
ELRS NI 2
- Type: ISM
- ESP8285 processor
- 2.4GHz Omnidirectional - Frequency range: 2400 MHz to 2500 MHz
- Receiving refresh rate: 500Hz (upper limit), 25Hz (lower limit)
- Working voltage: 5V
- Weight: 0.42g (without )
- Size: 10mm x 10mm x 3mm
- Working Protocol: CRSF (Betaflight)
Binding Procedure:
1. Connect the receiver to the flight controller and supply power to the flight controller via USB. After the LED on the receiver turns off, disconnect the USB. Repeat this once.
2. When the USB is plugged in Compatible With the third time, the LED will flash twice, indicating the receiver is in pairing mode.
3. Connect the ES24TX module or DIY 2.4G ELRS tuner module to the remote control correctly. Copy the ELRS.LUA file to the SD card in the remote control under SD Card/Scripts/tools, then run ELRS.LUA to bind.
4. Upon successful binding, the LED on the receiver will remain on, and telemetry data can be received.
5. Receiver status meanings:
- on: frequency pairing successful or normal communication.
- Double flashes: in frequency pairing mode.
- Slow flashing: cannot receive signals.
