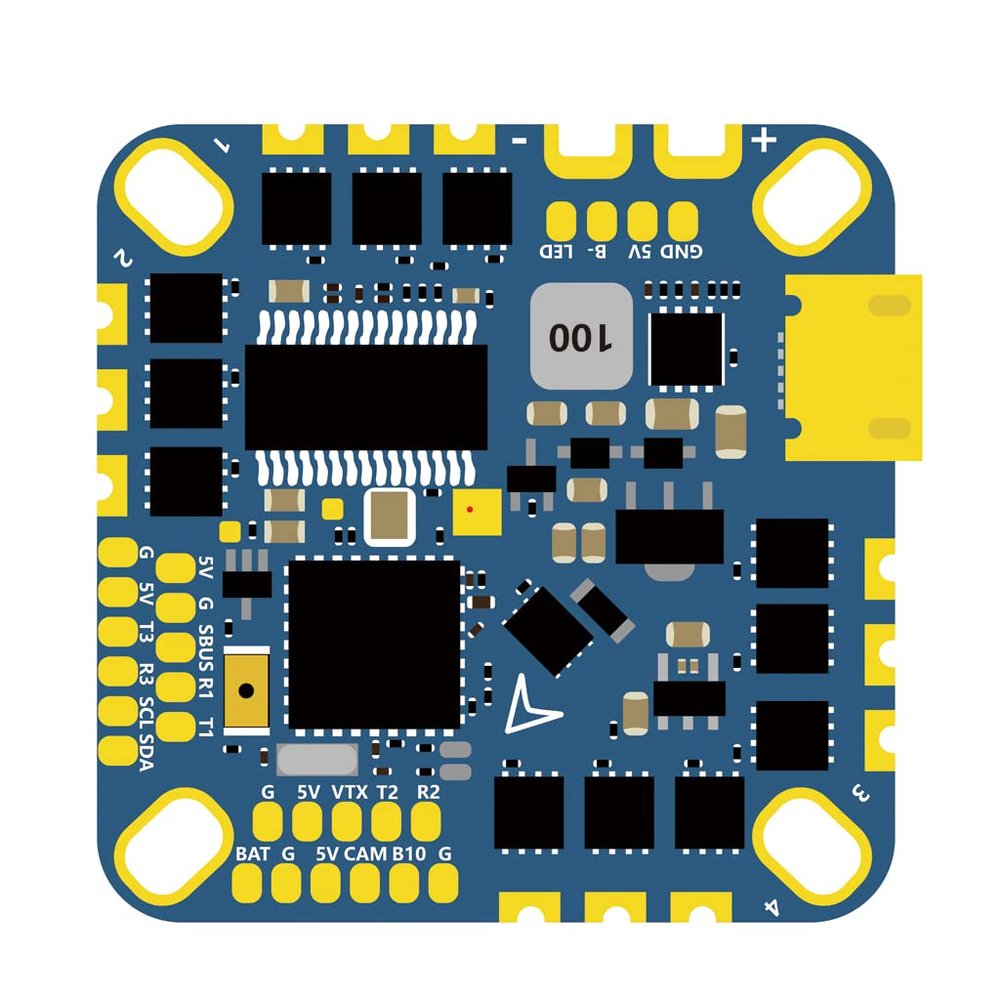

FEICHAO F411 20A ESC AIO 2S-5S BLHELI_S Flight Controller MPU6000 Compatible with Frsky/Futaba/Flysky/TBS Crossfire/DSM-X DSM-2 Receiver (20A)

Description

• The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.
• MOS adopts imported 30V high current resistance mos, long life and strong load capacity.
• Using industrial grade LDO and high-quality Japanese Murata capacitors, high temperature resistance and strong filtering performance.
• Note: 20A for 2S-5S, 35A for 2S-5S ; LED: Support WS2812 and other programmable.
• Support : Compatible with Frsky/compatible with Futaba/compatible with Flysky/TBS Crossfire/DSM-X: DSM-2 Receiver , PWM/Oneshot125/Oneshot42/Multishot/Dshot150/Dshot300/Dshot600 Protocol

FEICHAO F411 20A/35A ESC AIO 2S-5S BLHELI_S Flight Controller MPU6000 Compatible with Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X DSM-2 receiver

Features:

1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 30V high current resistance mos, long life and strong load capacity.

3. Using industrial grade LDO, high temperature resistance.

4. Using high-quality Japanese Murata capacitors, strong filtering performance

Size: 31.* 31.mm (25.5mm-26.5mm mounting hole)

Packing size: 63*32mm

Product net weight: 7g

Package weight: 25g

Flight control parameters:

CPU: STM32F411CEU6

IMU: MPU6000

OSD: AT7456E

Barometer: BMP280

LED: Support WS2812 and other programmable

Sensor: Built-in current sensor

Firmware version: betaflight_4.1.1_MATEKF411

Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSM-X: DSM-2 receiver

ESC parameters:

Firmware support: BLHELI_ S

Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Input voltage: 2S-5S Lipo

Note: 20A for 2S-5S, 35A for 2S-5S

Continuous current: 20A/35A (optional)

Peak current: 25A

Firmware version: BLHELI _S (G- H-30)
