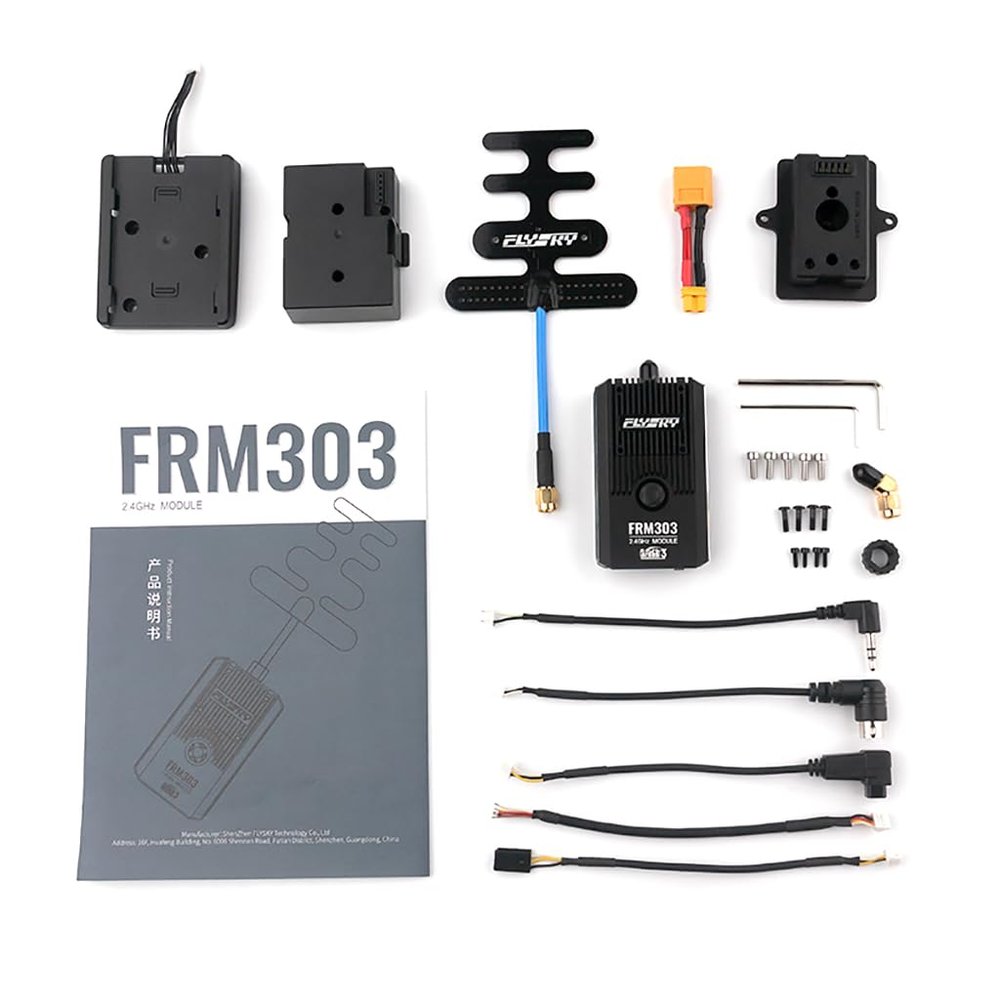

FEICHAO Flysky FRM303 24G 18CH AFHDS3 RF Module Output PPM S.Bus Signal for FS-ST8 FTr8B Receiver (Full Version)

Description

• FRM303 is a multi-function high performance RF module in compliance with the AFHDS3 third generation automat is frequency hopping digital system protocol.
• It features an external replaceable single antenna, support of bi-directional transmission, three power supply methods, support of voltage alarm function in case of external power supply.
• Devices that can output standard PPM signals, such as FS-TH9X, FS-ST8, FTr8B receiver; Devices that can output standard S.BUS signals, such as FS-ST8, FTr8B receiver.
• Input Power: XT30 Interfac: 5~28V/DC; Signal Interface: 5~10V/DC; USB Port: 4.5~5.5V/DC. Data Interface: PPM, UART and S.BUS.
• Working Current: 98mA/8.4V(External power supply); 138mA/5.8V (Internal power supply); 135mA/5V(USB).

FLYSKY FRM303 24G 18CH AFHDS3 RF Module Output PPM S.BUS Signal for FS-ST8 FTr8B Receiver

FRM303 is a multi-function high performance RF module in compliance with the AFHDS3 third generation automat is frequency hopping digital system protocol. It features an external replaceable single antenna, support of bi-directional transmission, three power supply methods, support of voltage alarm function in case of external power supply, and support of inputting PPM, S.BUS and UART signals.

Adaptive Devices
PPM: Devices that can output standard PPM signals, such as FS-TH9X, FS-ST8, FTr8B receiver;
S.BUS: Devices that can output standard S.BUS signals, such as FS-ST8, FTr8B receiver;
Closed Source Protocol-1.5M UART: PL18;
Open Source Protocol-1.5M UART: EL18;
Open source protocol-115200 UART: Devices that can output open source protocol-115200 UART signal .
Adaptive Models: Fixed-wing aircraft, racing drones, relays
Number of Channels: 18
Resolution: 4096
RF: 24G ISM
24G Protocol: AFHDS 3
Maximum Power 3500m (Air distance without interference)
Antenna: External sigle SMA antennaOuter-screw-inner-pin

Input Power:
XT30 Interfac: 5~28V/DC
Signal Interface: 5~10V/DC
USB Port: 4.5~5.5V/DC

Working Current:
98mA/8.4V(External power supply)
138mA/5.8V (Internal power supply)
135mA/5V(USB)

Data Interface: PPM, UART and S.BUS
Temperature Range: -10 ~ +60
Humidity Range: 20% ~ 95%
Online Update: Yes
Dimensions: 75*44*15.5mm(Excluding antenna
Weight: 65g (Excluding antenna and adapter
Certifications: CE, FCC ID:2A2UNFRM30300
