FEICHAO Flysky FS-R7V FS-R7D 7CH/FS-R4P 4CH/FS-SR12 12CH Receiver with ANT Protocol for RC Car Remote Control (FS-R4P 4CH)

Description

• The FS-R7V is a bi-directional receiver offering 7 channels using the ANT communication protocol. Built-in high performance gyroscope, external single antenna, PWM or PPM/i-BUS/S.BUS signal output. Can be used with various model cars and boats.
• The FS-R7D is a light set receiver offering 7 channels using the ANT protocol. With an external single antenna, supporting bi-directional backhaul function. It can output PWM signals and headlamp control signals. Easy to use for a wide range of vehicles.

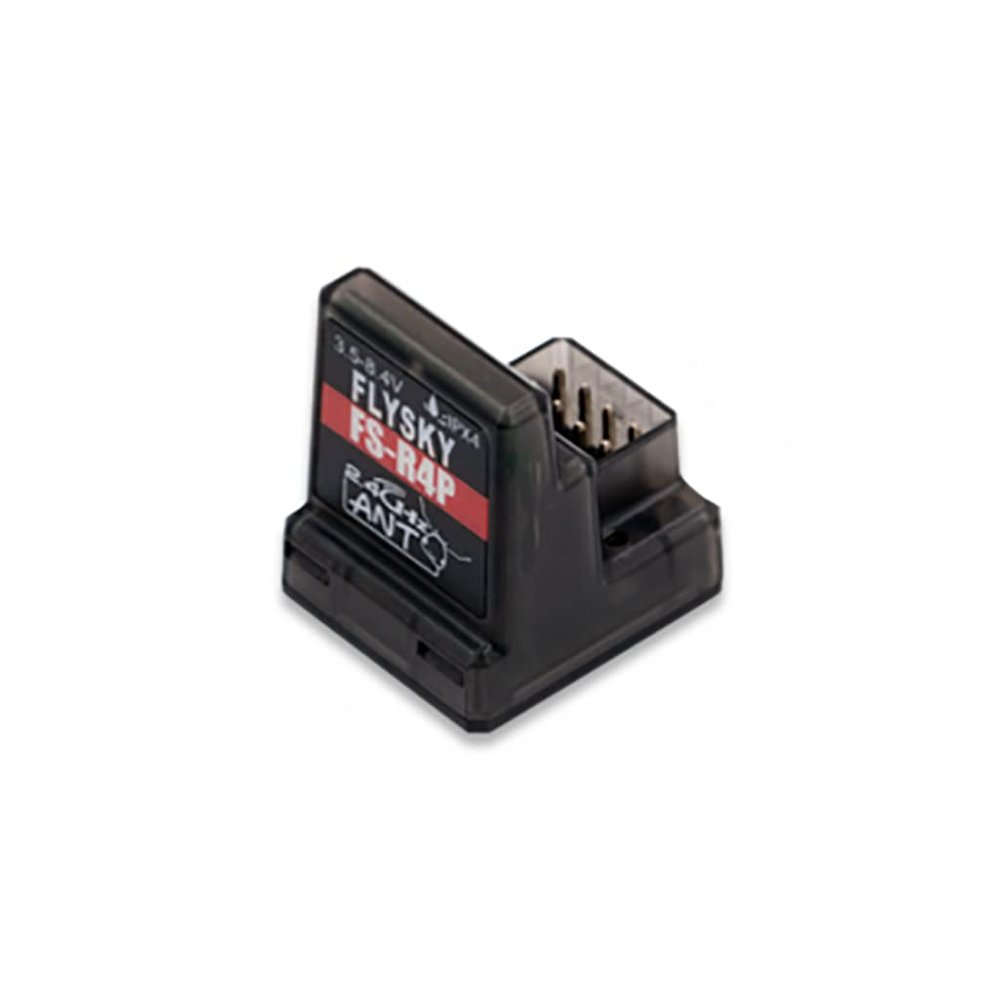

• The FS- R4P is a built-in antenna receiver for ANT protocol vehicles.It has 4 pwm output channels, a built-in single antenna, IPX4 level water proof, and vertical pin, automatic code matching. Easy installation, no external antenna.
• The FS-SR12 is a receiver that supports 12 PWM channel signal outputs using the ANT protocol. lt has two antennas, supporting two-way transmission and transfer-back function. Can be use for fixed-wing aircraft, helicopters, gliders, delta-wing airplanes, multicopters, engineering vehicles, boats, robots or cars.
• Compatible Product: FS-R7V RX: FS-G7P, FS-MG7; FS-R7D RX: FS-G7P, FS-MG4, FS-MG7; FS-R4P RX: FS-G4P, FS-G7P, FS-ST8; FS-SR12 RX: FS-ST8, FS-MG4, FS-MG7

FS-R7V:
Radio frequency: 2.4G ISM
Transmission power: 300m (open and interference-free ground distance)
Online update: supported
Water proof rating: PPX4
Certification: CE, FCC ID: 2A2UNR7D00

FS-R4P:
PWM channel: 4
Wireless frequency: 2.4G
Wireless protocol: ANT
Remote control distance: 100~300m (ground)
Antenna type : Built-in single antenna
Power supply : 3.58.4V
RSSI : Not supported
Data interface PWM
Online update: Not supported
Certification : CE, FCC

FS-SR12:
Number of PWM channels: 12
Wireless frequency: 2.4G ISM
Transmit power: less than 20dBm
Wireless standard: ANT
Channel Resolution: 4096 levels
Antenna Type: Dual Antenna
Remote Distance: > 1500m (open air distance without interference)
Input power: 3.5~9V/DC
Operating current: 70mA/5V
Output data: PWM/PPM/i-BUS/S.BUS
Online update: Support
Certification: CE, FCC ID: 2A2UNSR1200
