FEICHAO JHEMCU ExpressLRS CRSF Receiver Nano Long Range 915RX for Freestyle Drone DIY Parts

Description

• Frequency range: 915M FCC
• Maximum receive refresh rate: 500; Minimum receive refresh rate: 25.
• Operating Voltage: 5V.
• Firmware: BETAFPV_900_RX 3.0.0.HEX.
• Size: 11mm*18mm*3mm.

FEICHAO JHEMCU ExpressLRS CRSF Receiver Nano Long Range 915RX for Freestyle Drone DIY Parts

Parametere:
ESP8285 MCU (FCC)
SX1276 Radio Frequency
Frequency range: 915M FCC
Maximum receive refresh rate: 500
Minimum receive refresh rate: 25
Operating Voltage: 5V
Weight: 0.6g (without antenna)
Firmware: BETAFPV_900_RX 3.0.0.HEX
Size: 11mm*18mm*3mm

Indicator light status:
Double flashing: code pair mode
Slow flashing: no transmit signal received
Always on: transmit signal received
Fast flashing: WI--FI upgrade mode

Frequency pairing steps:
1. After the receiver is connected to the flight control, connect the USB to power the flight control. Repeat the operation twice, when the third time you insert the USB, the LED will start to double flash and the receiver will enter the code pairing mode. 2.
2. After connecting the 915M (868M) ELRS HF head module and the remote control correctly, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, then run ELRS.
3. After successful binding, the LED on the receiver will turn on and the telemetry signal will be received.

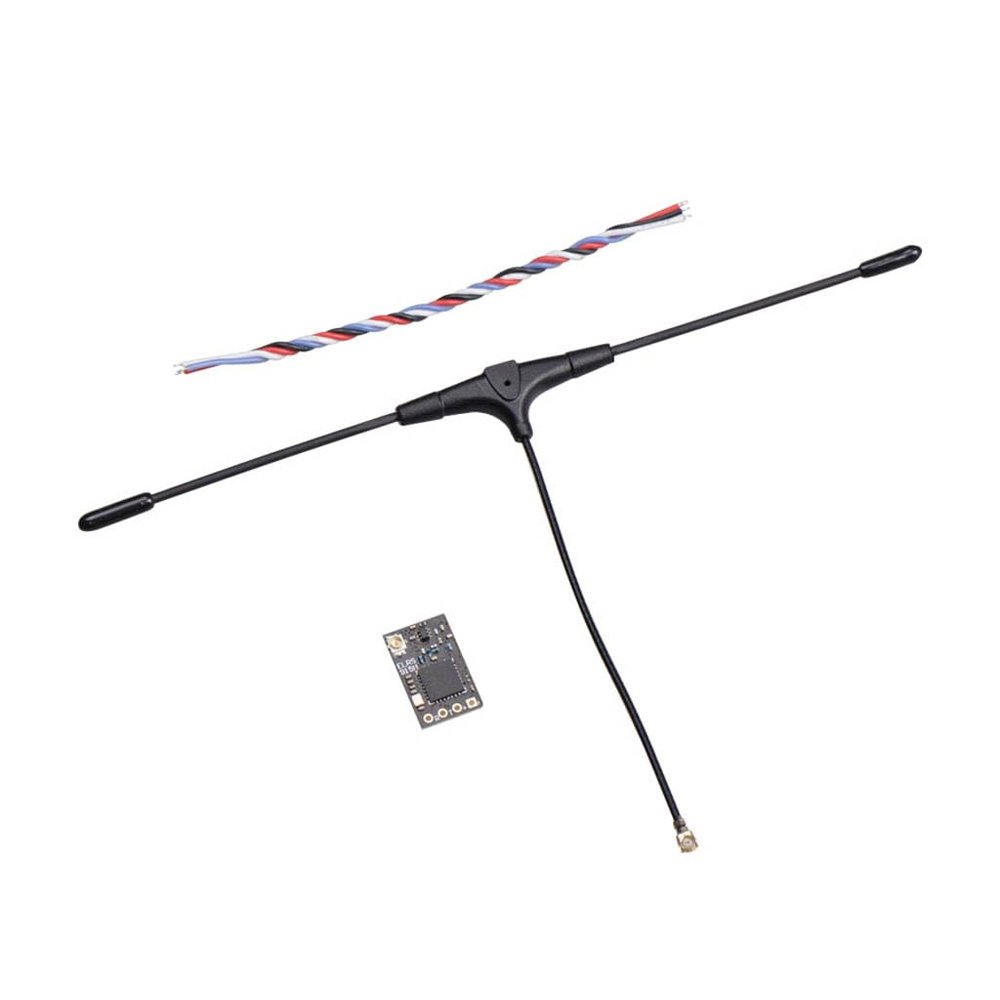

Package Contain:
Receiver * 1
Cable * 4
T-antenna * 1
