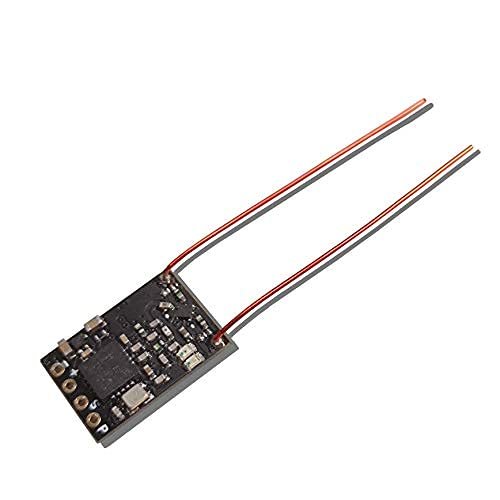

FEICHAO New XR502 Micro Receiver 2.4G SBUS PPM RSSI Dual Antenna for DSM-X/2 SFHSS Frsky-D8/D16 Flysky AFHDS-2A Radio Transmitters RC FPV Drone (Flysky-AFHDS-2A)

Description

• [ Two ways for RSSI signal output ] SBUS signal: RSSI signal output is on the No.16 channel(AUX12) of SBUS' PPM signal: RSSI signal output is on the No.9 channel of PPM.
• [ Variable RF Link technology ] When the receiver is coming close to radio, RF Link will adjust LNA gain and PA output power lower to avoid short distance control failure automatically . When the receiver is going far away from radio, RF Link will adjust LNA gain and PA output power higher to increase RX's working range automatically.
• [ Dual antenna ] Can be bent in any direction and no broken, RSSI signal output .
• [ Widely Usage ] Can be used on any flight control boards, With built-in 13dBm LNA.( Version optional)
• [ Super Micro ] Super small size(10.0*14.2*2.0mm) , and Super light(0.65g).

FEICHAO New XR502 Micro Receiver 2.4G SBUS PPM RSSI Dual Antenna for DSM-X/2 SFHSS Frsky-D8/D16 Flysky AFHDS-2A Radio Transmitters RC FPV Drone

Binding operation:
Press the binding switch after XR6OO receiver is powered, it enters binding mode after 2 seconds when the slow flashing red LED turns to fast blinking. Then bind the receiver according to the transmitter manual. When the fast blinking red LED turns to solid bright, it indicates binding is successful.

Variable RF Link technology
When the receiver is too close to radio(remote control), normally RF signal will be blocked and meanwhile lose control happens, Variable RF Link is born for solving the problem! As soon as Variable RF Link finds that the receiver is coming close to radio, it will adjust LNA gain and PA output power lower to avoid short distance control failure automatically; When Variable RF Link detects that the receiver is going far away from radio, it will adjust LNA gain and PA output power higher to increase RX's working range automatically. RSSI signal output

Two ways for RSSI signal output:
1) SBUS signal: RSSI signal output is on the No.16 channel(AUX12) of SBUS;
2) PPM signal: RSSI signal output is on the No.9 channel of PPM;
Mixture protocol(only for XR502-F version): XR502-F version can support both D8 and D16 FrSky protocol, customer can decide which one they would like to use while binding. The constant bright blue LED, binding is succeed indicating RX is with D16 protocol; If the blue LED is off and binding is succeed indicating RX is with D8 protocol.
