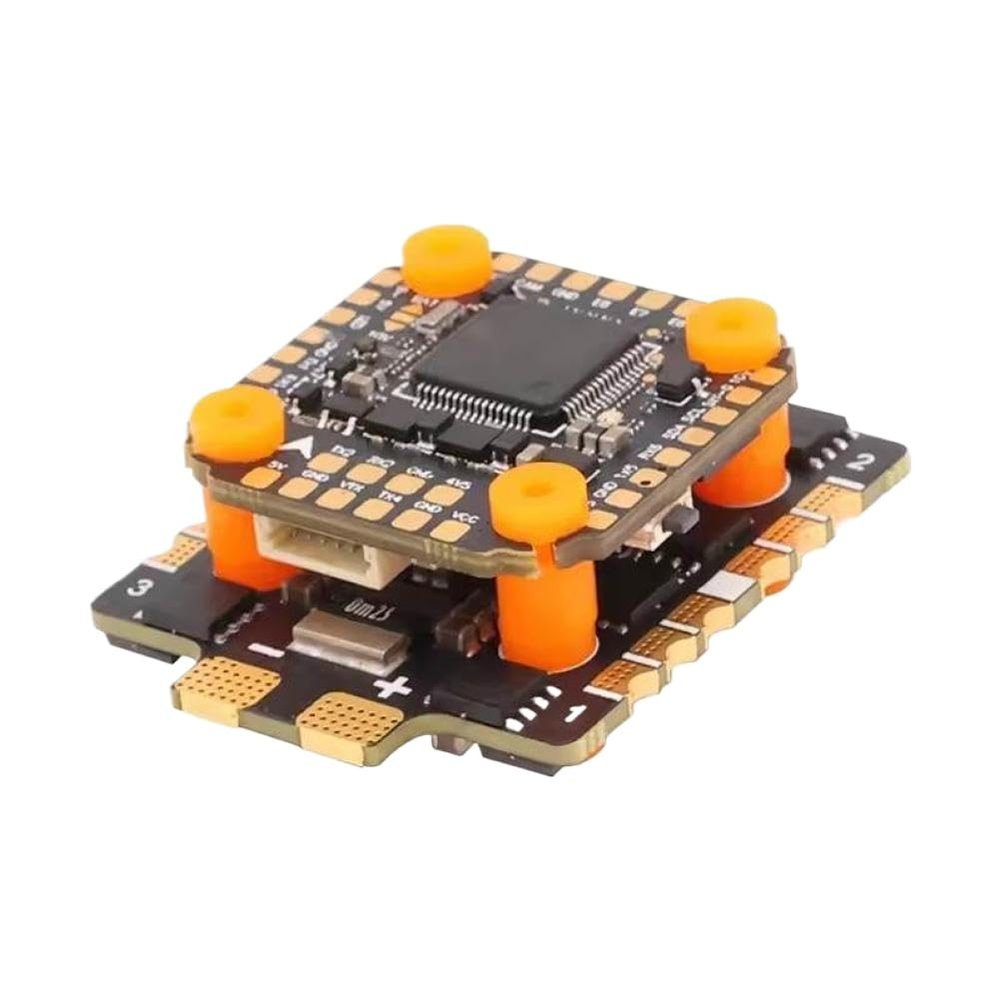

Flight Controller FPV Stack With Dual BEC 32Bit 4in1 ESC F722 V2 2-8S 60A F7 65A Compatible With RC Drone DShot150 300 600 1200 PWM(65A 2-6S)

Description

• Model Compatibility: Fits drones requiring an F722 V2 2-8S 60A / F7 65A flight controller FPV stack with dual BEC and integrated 4-in-1 ESC functionality.
• Technical Specification: Supports DShot150/300/600/1200 and PWM protocols, operates on 28S LiPo input, and features 32-bit processing architecture.
• Functional Equivalence: Provides identical flight control, ESC, and dual BEC functionality as the unit for FPV drone applications without altering operational behavior.
• Installation Note: Replaces the existing F722 V2 2-8S 60A / F7 65A flight controller FPV stack and requires matching physical mounting, pinout, and wiring configuration.
• Usage Scope: Designed exclusively for RC drone systems that specify F722 V2 2-8S 60A or F7 65A flight controller FPV stack with dual BEC and 4-in-1 ESC requirements.

F722 V2 2-8S 60A / F7 65A Flight Controller FPV Stack Dual BEC 32Bit 4in1 ESC for DShot150/300/600/1200 PWM for RC Drone Flight controller dimensions: 29x29mm.Mounting hole pattern: 20x20mm with 4mm diameter holes.Processor: STM32F722RT6.Gyroscope: ICM42688.Dual BEC outputs: 5V/2A and 10V/2A.Onboard flash memory: 16MB.Input voltage range: 2S6S.Firmware: hakrcf722V2.UART serial ports: 6.Supports external programmable LED.Includes 6-pin connector. Integrated 32-bit 4-in-1 ESC module: dimensions 34x42.5mm.Mounting hole pattern: 20x20mm with 4mm diameter holes.Continuous current rating: 60A (for F722 V2 variant) or 65A (for F7 variant).Maximum sustained current: 70A for 10 seconds.Input voltage range: 2S8S.Compatible with DShot150, DShot300, DShot600, DShot1200, PWM, Oneshot125, Oneshot42, and Multishot protocols.Configurable using BLHeli_Suite32 Activator 32.9.0.3.
