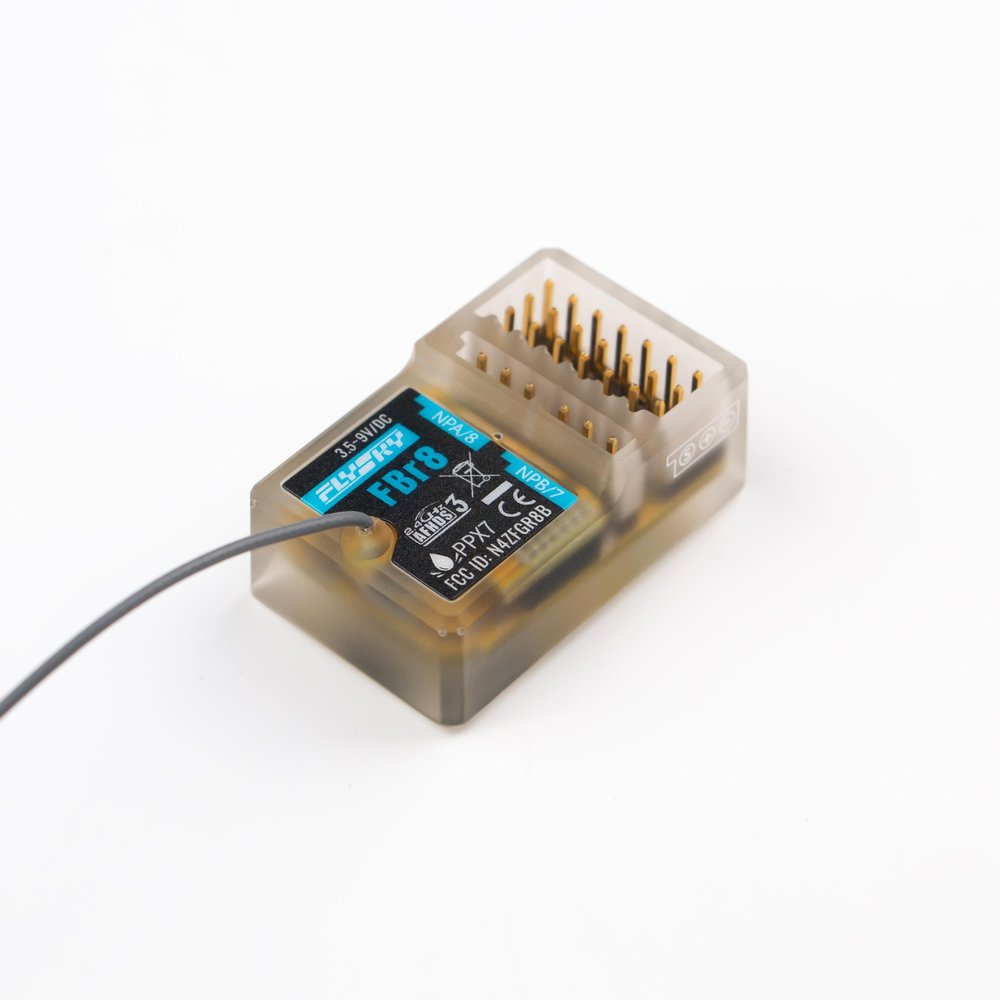

Flysky FBr8 8CH AFHDS 3 Protocol Waterproof PPX7 Receiver for RC Car Boat (Standard Antenna Edition)

Description

• FLYSKY FBr8 is an 8-channel receiver based on AFHDS 3 third-generation automatic frequency hopping digital system protocol.
• It supports four Newport function interfaces. Newport interfaces can be customized with the input or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc.
• It adapts all transmitters or RF modules which support AFHDS 3 protocol.
• This receiver features waterproof level PPX7, a single external antenna, and unidirectional and bi-directional transmission.
• There are two versions of this receiver, one is the standard antenna version and the other is the extended antenna version. Please choose according to your needs.

Product Model: FBr8
Adaptive Transmitters: Transmitters or RF Modules Which Support AFHDS 3 Protocol
Adaptive Models: Car or Boat
PWM Channels: 8
RF: 2.4GHz ISM
2.4G Protocol: AFHDS 3
Antenna: Single External Antenna(Coaxial Antenna)
Maximum Power: <20dBm (e.i.r.p.)EU
Distance: 300m(Ground Distance without Interference)
Input Power: 3.5~9V/DC
Working Current: 50mA/5V
Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Resolution: 4096
Temperature Range: -10 ~ +60
Humidity Range: 20% ~ 95%
Online Update: Yes
Dimensions: 37*23*13mm
Waterproof: PPX7
Weight: 14g (Without Pin Header)
Certifications: CE, FCC ID: N4ZFGR8B
