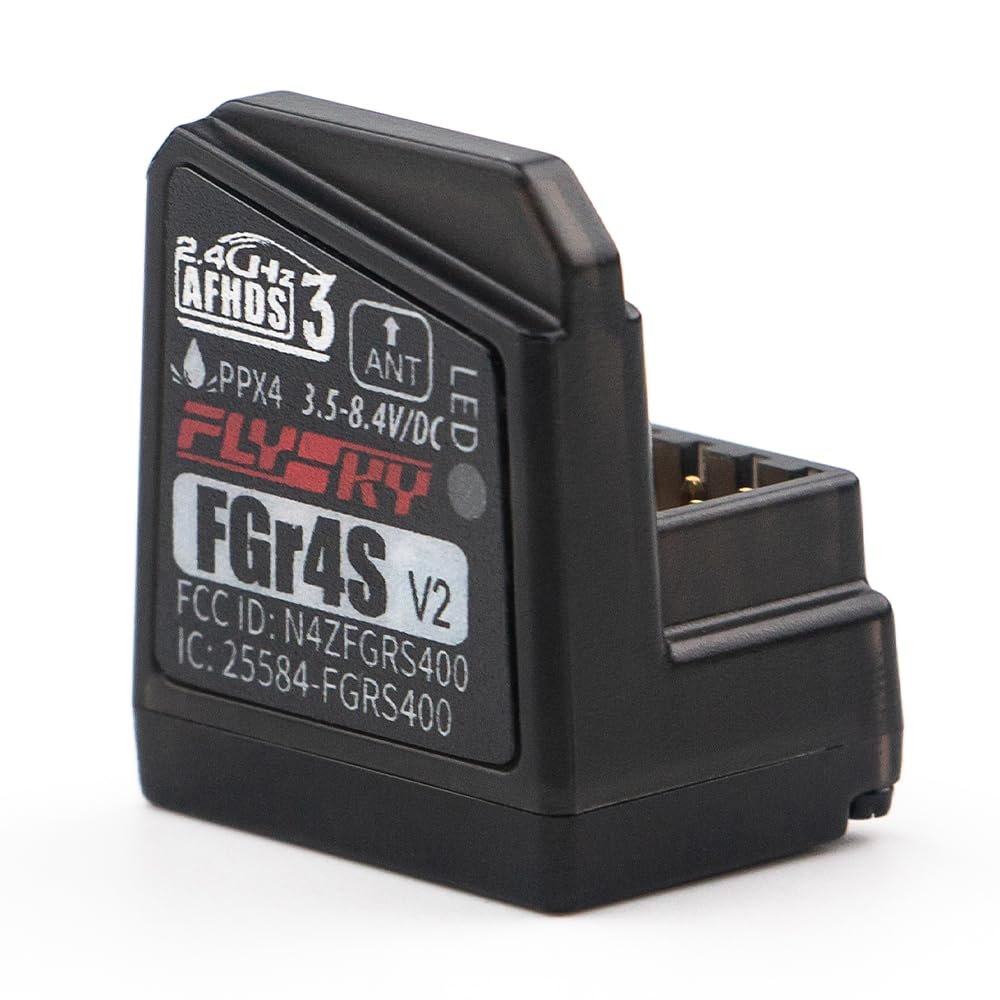

Flysky FGr4S V2 Receiver, 4 Channel AFHDS 3 Receiver for Flysky Noble NB4, NB4+, NB4 PRO, NB4 PRO+, NB4 Lite RC Transmitter Remote Controller

Description

• The fgr4s receiver is compatible with the Flysky Noble NB4/NB4+/NB4 PRO/NB4 PRO+/NB4 Lite transmitters.
• The fgr4s v2 receiver supports PPM, PWM, i-BUS, and S.BUS data output.
• The fgr4s uses an internal single antenna with two-way transmission capabilities and is designed to be compact and easy to install.
• The fgr4s receiver uses AFHDS 3 (Third Generation Automatic Frequency Hopping Digital System).
• This fgr4s is small and lightweight, helping you save space and minimize carrying weight.

Product Specification:
Model Type: Car/Boat
Channels: 4
Remote control distance: >200m (ground)
Data Output: PPM/i-BUS/S.BUS/PWM
RF:2.4GHz
Transmission Power:<20dBm(EU)
RF Standard: AFHDS 3
Antenna: Built-in Antenna
Input Power:3.5V~8.4V
Display: LED Indicator
Online Update: Yes
Dimensions:25.5*22*17.3 mm
Weight: 5.1g

Binding Steps:
1. Insert the bind cableinto the receiver BIND port;
2. Plug the power cable into any other port, and the receiver's LED will start to flash indicating that it has entered bind mode.
3. Put the transmitter into bind mode; (See the transmitter's instruction manual for more information)
4. Binding is successful when the receiver's LED starts to flash slowly. Remove the power and bind cables from the receiver. If the transmitter is bidirectional the receiver status indicator will not flash slowly.
5. Reconnect the power cable to the receiver.
6. Check to make sure that the transmitter and receiver are working as expected. If there are any issues or unexpected operations follow the steps above to bind again.

Package List:
1*Flysky FGr4s V2 Receiver
