Flysky Module Receiver FS-CEV04 FS-CPD01 FS-CPD02 FS-CTM01 CVT01 Voltage / Temperature / Height / Telemetry Data Module Receiver for FS i6 i10 iT4S TX iA6B iA4B iA10B RX iBus (FS-CTM01)

Description

• MODEL FS-CPD : CPD01 RPM Telemetry [magnetic] module , CPD02 RPM Telemetry [Photo Induction(optical)] module ; Monitor range of speed 60000RPM/mins.
• MODEL FS-CTM01 : Temperature acquisition module , Monitor range of temperature -40-250C .
• MODEL FS-CVT01 : Voltage acquisition module , Monitor range of Voltage: 0-100V DC.
• MODEL FS-CEV04: i-BUS Serial bus receiver , 4 Channels , with i-BUS PORT ; MODEL FS-CAT01: Height acquisition module.
• MODEL Power: 4.0-6.5V DC ; Weight : 6g-8.1g(Note: Different module have different purpose, please kindly check before order)

FlySky Module Receiver FS-CEV04 FS-CPD01 FS-CPD02 FS-CTM01 CVT01 Temperature Telemetry Data Module for FS i6 i10 iT4S TX iA6B iA4B iA10B RX iBus

Compatible Receiver: iA4B(directly), iA6B(directly), iA10(need conversion cable)

FS-CAT01 Can`t be used to I6 I6X transmitter, but NV14 PL18 IT4S I10 and above.

MODEL: FS-CPD01 RPM Telemetry [magnetic] module

Monitor range of speed 60000RPM/mins
Power: 4.0-6.5V DC
Weight: 6.6g
Size: 31*15*8.5mm

MODEL: FS-CPD02 RPM Telemetry [Photo Induction(optical)] module

Monitor range of speed 60000RPM/mins
Power: 4.0-6.5V DC
Weight: 6.8g
Size: 31*15*8.5mm

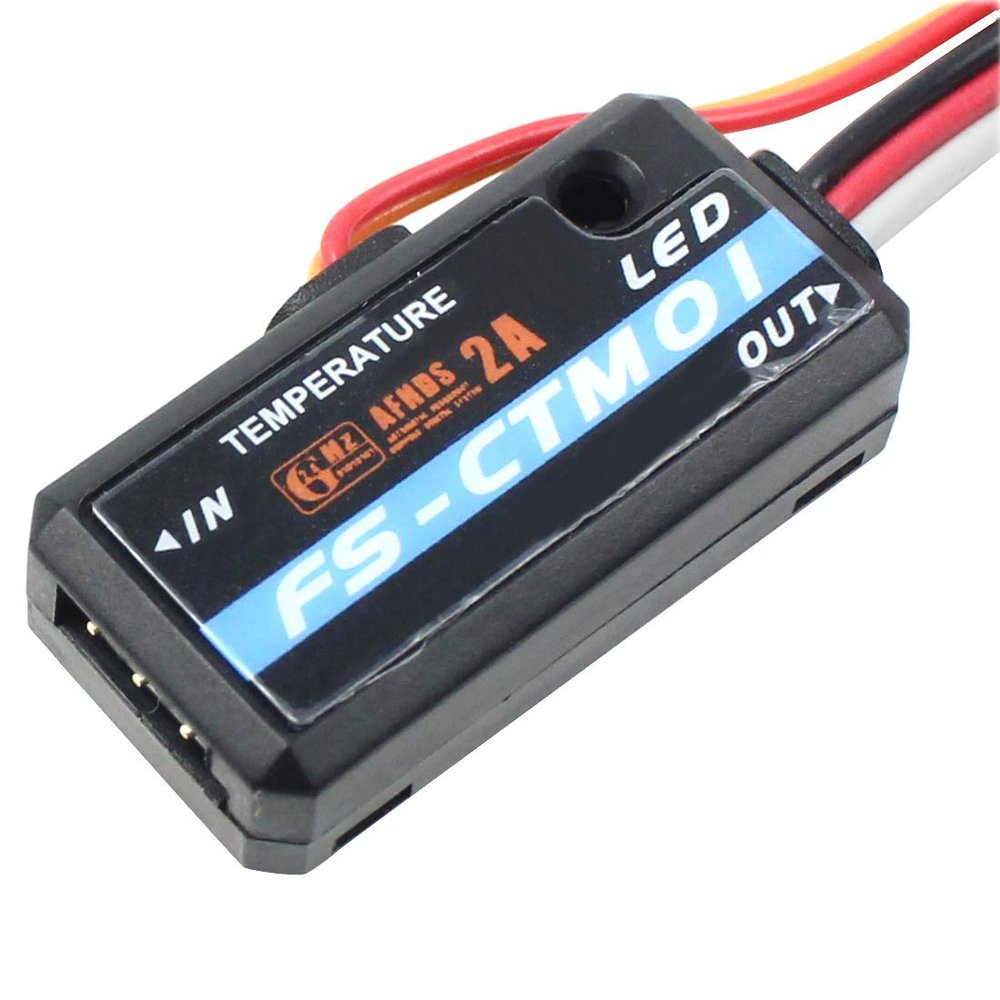

MODEL: FS-CTM01 Temperature acquisition module

Monitor range of temperature: -40-250C
Power: 4.0-6.5V DC
Weight: 6.8g
Size: 31*15*8.5mm

MODEL: FS-CVT01 Voltage acquisition module

Monitor range of Voltage: 0-100V DC
Power: 4.0-6.5V DC
Weight: 6g
Size: 31*15*8.5mm

MODEL: FS-CEV04 i-BUS Serial bus receiver

Channels: 4
Weight: 8.1g
Power: 4.0-6.5V DC
Size: 30*25.6*13mm
i-BUS PORT: yes
