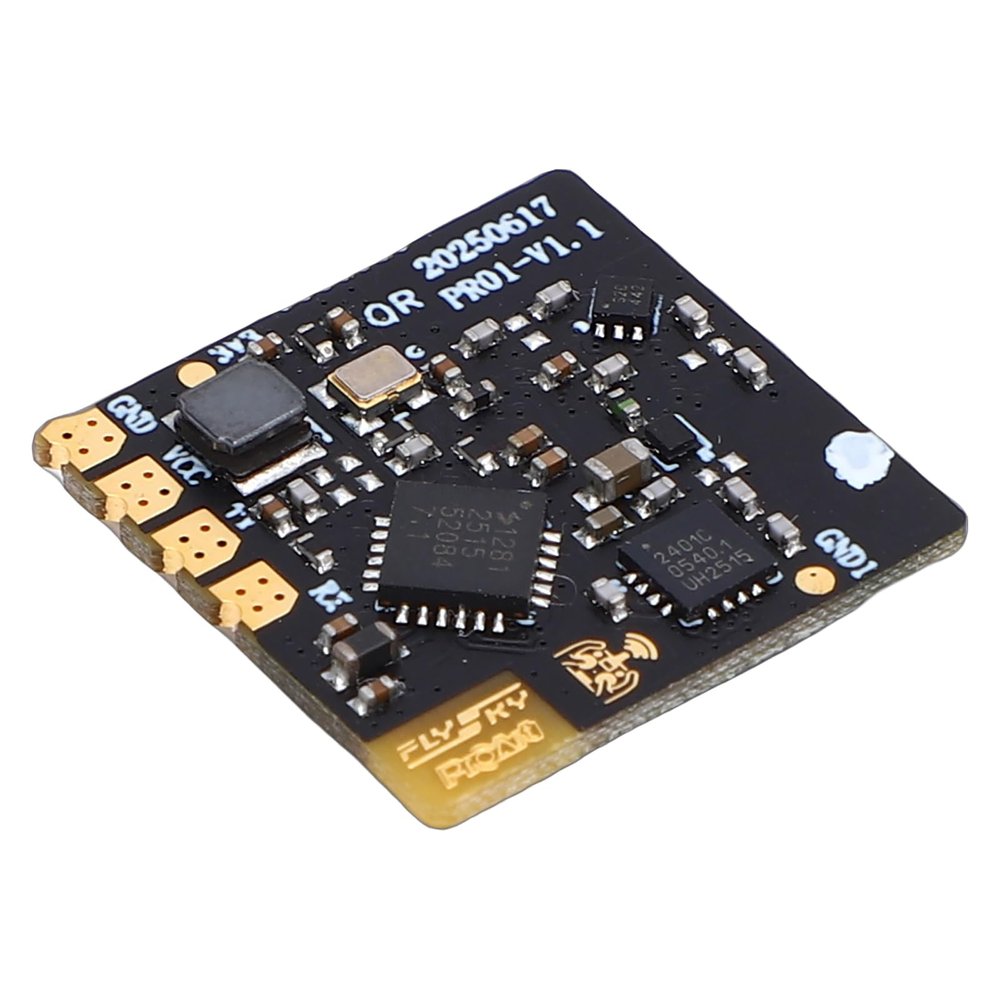

Flysky PR01 Receiver 16CH ELRS Receiver for PA01 & ELRS Transmitters

Description

• 16-Channel Micro Receiver with ELRS Protocol:This PR01 receiver delivers 16 full-resolution channels (4096 steps) with the advanced ExpressLRS 2.4GHz protocol. Experience ultra-low latency with adjustable refresh rates from 25Hz up to 500Hz (F1000 capable), making it ideal for high-performance fixed-wing aircraft, gliders, helicopters, FPV drones, and even surface models
• Antenna Diversity & Dual Ceramic Antennas for Stable Signal:Equipped with onboard dual ceramic antennas supporting true antenna diversity, the PR01 maintains a robust RF link even in challenging environments. The built-in Temperature Compensated Crystal Oscillator (TCXO) ensures precise frequency stability across varying temperatures for reliable, long-range control
• Flexible Firmware Updates via Wi-Fi or Serial:Stay current with the latest features through convenient wireless firmware updates over Wi-Fi or traditional wired updates via serial connection. No special hardware requiredjust connect to your network or PC to keep your receiver optimized
• Wide Compatibility & Multiple Output Modes:Compatible with all ELRS-enabled transmitters and modules, including the Flysky PA01 and others. Outputs both CRSF and S.BUS signals for seamless integration with flight controllers, servos, and other RC electronics across a wide 3.59V operating voltage
• Ultra-Compact & Lightweight Design:Measuring just 18.018.03.7mm and weighing only 1.2g, this micro receiver fits effortlessly into tight spaces in small-scale models, wings, and mini quads.

Product Parameters:
Product Model: PR01
Compatible Transmitters: Supports all ELRS protocol transmitters and LNBs
Compatible Models: Fixed-wing aircraft, gliders, helicopters, cars, boats, robots, racing drones, etc.
Number of Channels: 16
Transmit Power: <20dBm
Wireless Frequency: 2.4GHz ISM
Wireless Protocol: ELRS
Transmission Mode: Antenna Diversity
Channel Resolution: 4096 levels
Antenna Type: Ceramic onboard dual antennas
Operating Voltage: 3.5~9V/DC
Data Output: CRSF/S.BUS
Supported Maximum Refresh Rate: 500Hz/F1000Hz
Supported Minimum Refresh Rate: 25Hz
Temperature Range: -10C~+60C
Humidity Range: 20%~95%
Firmware Update: Supports Wi-Fi wireless update or serial wired update
Dimensions: 18.0*18.0*3.7mm
Weight: 1.2g
Certifications: CE, FCC ID:2A2UNPR010

Operating Instructions:
Replace the receiver parts on the machine using the installation manual.

Packaging List:
1*Receiver
2*Cable
1*Instruction Manual
1*Protective Cover

Precautions:
* Ensure the product and model are correctly installed before use; otherwise, serious damage may occur.
*For proper operation, develop the habit of turning on the transmitter before the receiver and turning off the receiver before the transmitter.
* Ensure the receiver is installed away from motors, electronic speed controllers, or areas with excessive electronic noise.
* Keep the receiver antenna away from conductive materials such as metal rods and carbon materials. To avoid affecting normal operation, ensure a distance of at least 1 cm between the receiver antenna and conductive materials.
* Do not connect the receiver to a power source during preparation to avoid unnecessary damage.
