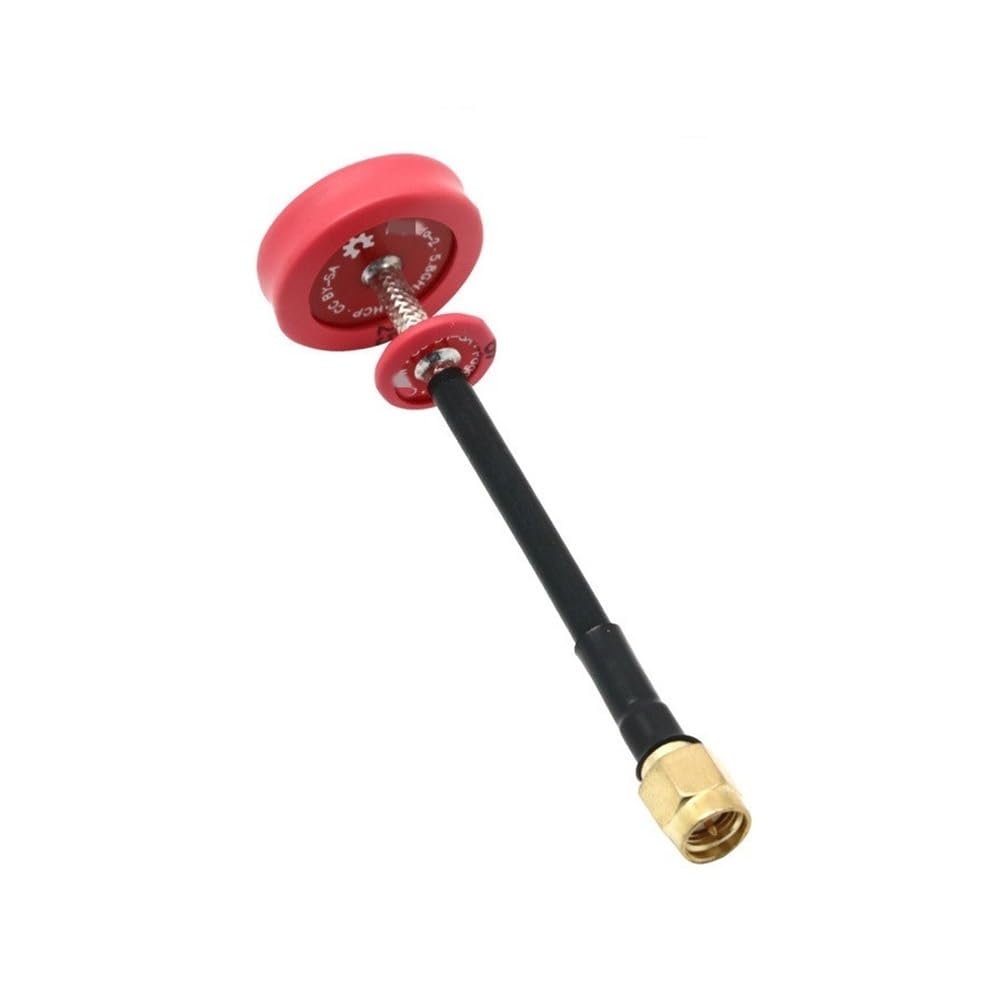

for Pagoda 2 / Triple Feed Patch 5.8G 5dBi 50W Omnidirectional Omni FPV Flat Panel for Pagoda Antenna LHCP/RHCP SMA/RP-SMA (Color : Red 80CM Pin)

Description

• - For Omnidirectional circularly polarized antenna
• - Light weight Small size
• - The new technology metal main rod,almost perfect axial ratio
• - Very low standing wave smooth omnidirectional radiation receiving mode
• - Silicone case can be easily installed and removed,light weight protection antenna.

For Pagoda 2 / Triple Feed Patch 5.8G 5dBi 50W Omnidirectional Omni FPV Flat Panel For Pagoda Antenna LHCP/RHCP SMA/RP-SMA

Center frequency 58 GHz
Bandwidth 500 MHz 555 605 GHz
Matching S11 20 dB VSWR 1.22 (at center frequency)
<; 1.3
Radiation efficiency: 95%
Quantity:2piece
Connector: SMA/ RP-SMA
Color: Black / Red

5.8GHz Triple Feed Patch Antenna SMA / RP SMA Directional Circularly Polarized Antenna for FPV for Fatshark Goggles RC Drone

Features:
The Triple Feed Patch antenna is a directional circularly polarized antenna.
Good radiation efficiency.
Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.
Good axial ratio, not just directly perpendicular to the patch but also off-center.
Cheap and easy to manufacture with high accuracy, even for a hobbyist.

Description:
Cheap and easy to manufacture with high accuracy, even for a hobbyist.
Specifications:
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 - 6.13 GHz)
<; -20 dB, VSWR 1.22 (at center frequency)
<; 1.3
Antenna gain: 9.4 dBi
Half power beam width: 55 (horizontal and vertical)
Radiation efficiency: 83.5%
Weight:20.7g
Color: black
