FPV 5.8G 5.8GHz 48 Channels RC832S Video Receiver with A/V and Power Cables for FPV Racing Drone

Description

• FPV 5.8G 5.8GHz 48 Channels RC832S Video Receiver with A/V and Power Cables for FPV Racing Drone

FPV 5.8G 5.8GHz 48 Channels RC832S Video Receiver With A/V and Power Cables
For FPV Racing Drone

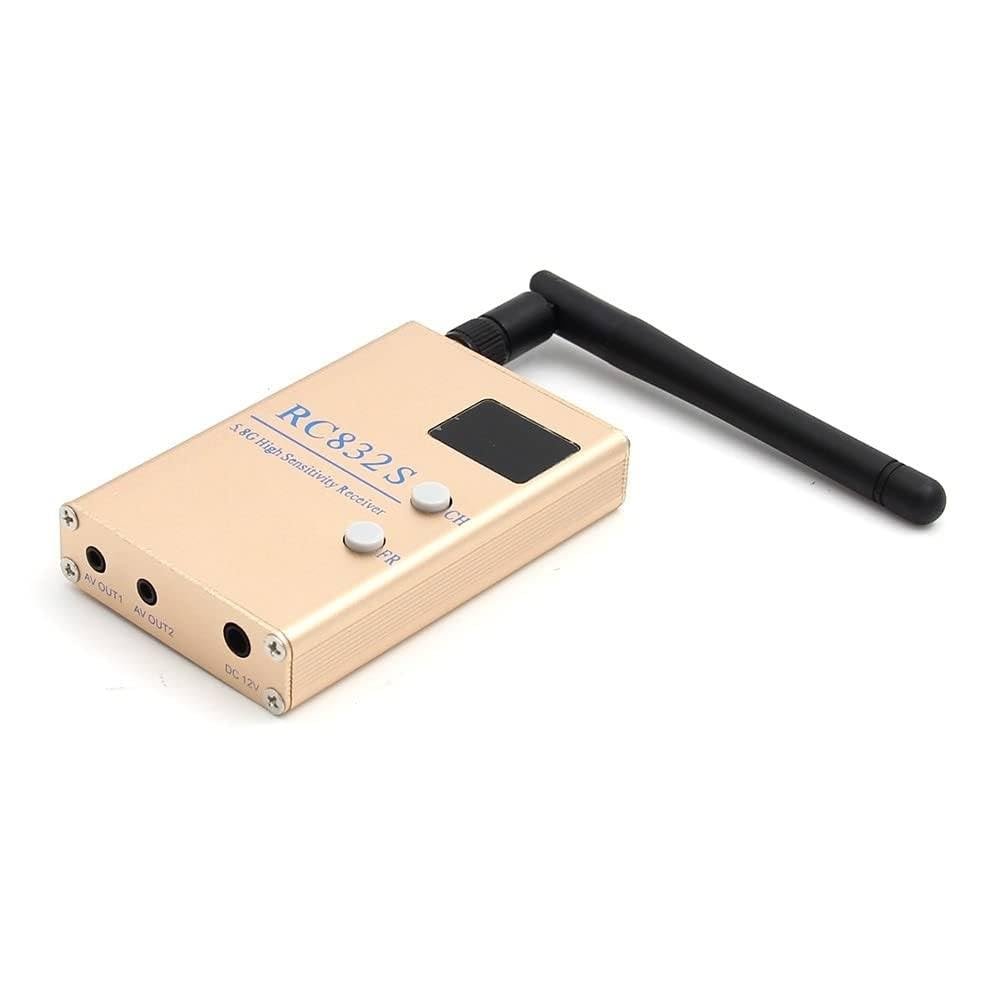

The RC832S
Receiver is nice and small in size for easy integration into your ground station, but big in and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn't get any simpler than this.
*For best range and video link stability we recommend using the 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory's tab
Features
48 channels: Cover A, B, E,F,H bands and L bands
Two switching buttons for the band and channel
Two digits display for the band and channel
Power off memory for last channel and band
dual Independent video and audio signal outputs
Specs:
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 12V
Working current: 200mA max
Antenna impedance: 50
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g
Frequency range:
FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M
FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M
Pac
