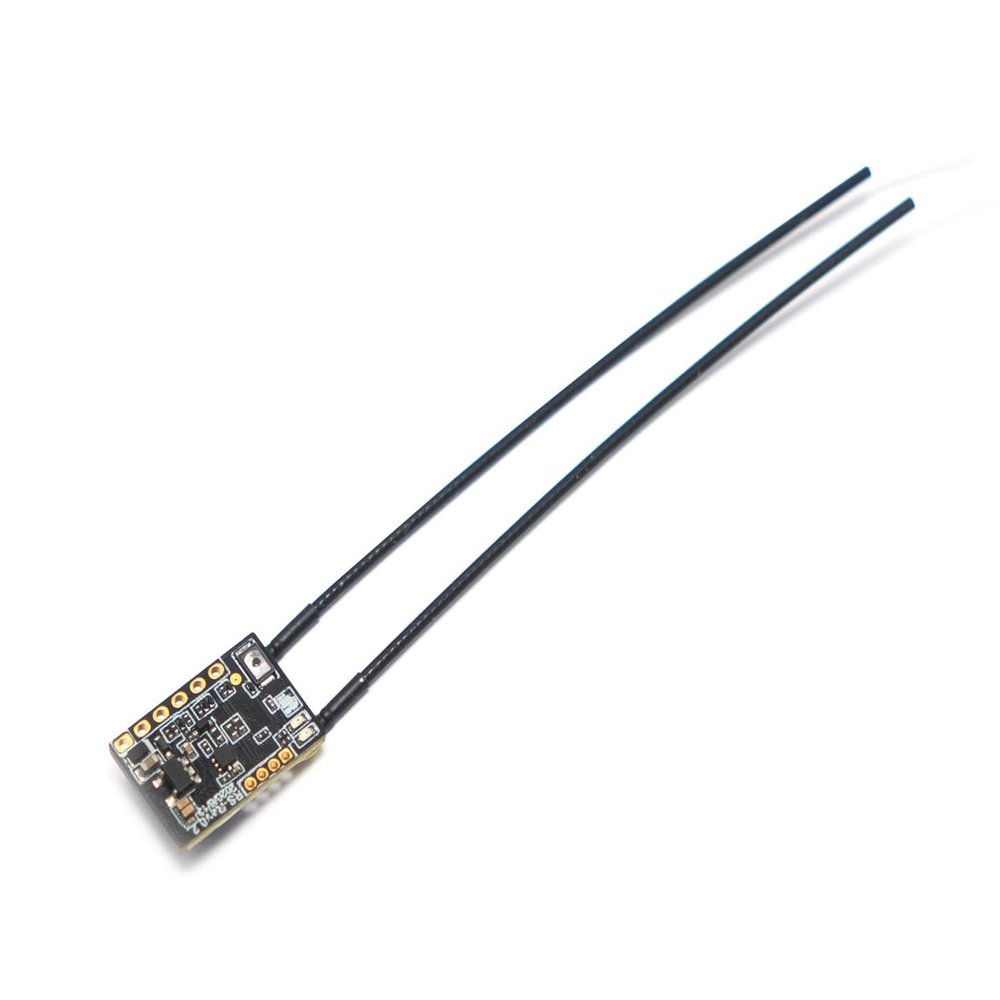

FrSky 2.4GHz Access Archer Plus RS Receiver/RS Mini Receiver Compatible with FrSky Access/ACCST D16 RC Transmitter (HELIDIRECT) (RS Mini Receiver)

Description

• The Archer Plus Series receivers include some new features. Firstly an enhanced anti-RF-Interference capability can offer a more solid and stable RF performance, and this is in addition to existing anti-interfere performance in the spark ignition process.
• These Plus series receivers are also with both ACCESS and ACCST D16 modes, where the RF protocol is smartly matched during the binding process on the radio.
• In ACCESS mode, these receivers not only feature OTA wireless firmware upgrades, increased range, and telemetry performance, they support even more functions like configurable telemetry power (RS), S.Port / F.Port / FBUS switching, and VFR indicators.
• The RS supports full-range signal control with an equivalent telemetry range. Dual detachable/replaceable antennas assure optimal antenna reception and maximum range with their lightweight design thanks to the extremely tiny form factor.
• Features an inverted S.Port that allows for easily connecting flight controllers, in addition to all this, the RS can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with an SBUS port. The best available signal will be used to ensure superior connectivity.

1. RS Receiver:
FEATURES:
Tiny and super lightweight
S.Port / F.Port / FBUS (Configurable via S.Port)
Over-The-Air (OTA) FW update
SBUS Out port (Supports 16CH / 24CH mode)
SBUS In port (Supports Signal Redundancy)
Inverted S.Port
SPECIFICATIONS:
Dimension: 16*11mm (L*W)
Weight: 1.3g
Operating Voltage: 3.5-10V
Operating Current: 60mA@5V
Antenna Connector: IPEX4
Control Range: Full range* with telemetry
(* Full Range: 2km, the control range may vary based on local conditions.)
Compatibility: All FrSky ACCESS/ACCST D16 transmitters.
2. RS Mini Receiver:
FEATURES:
Tiny and super lightweight
S.Port / F.Port / FBUS (Configurable via S.Port)
Over-The-Air (OTA) FW update
SBUS Out port (Supports 16CH / 24CH mode)
Onboard PCB-type antenna
Easily plug wire connector without soldering
SPECIFICATIONS:
Dimension: 16*11mm (L*W)
Weight: 1.3g
Operating Voltage: 3.5-10V
Operating Current: 12mA@5V
Onboard PCB-type antenna
Control Range: 600m (*The control range may vary based on local conditions.)
Compatibility: All FrSky ACCESS/ACCST D16 transmitters.
