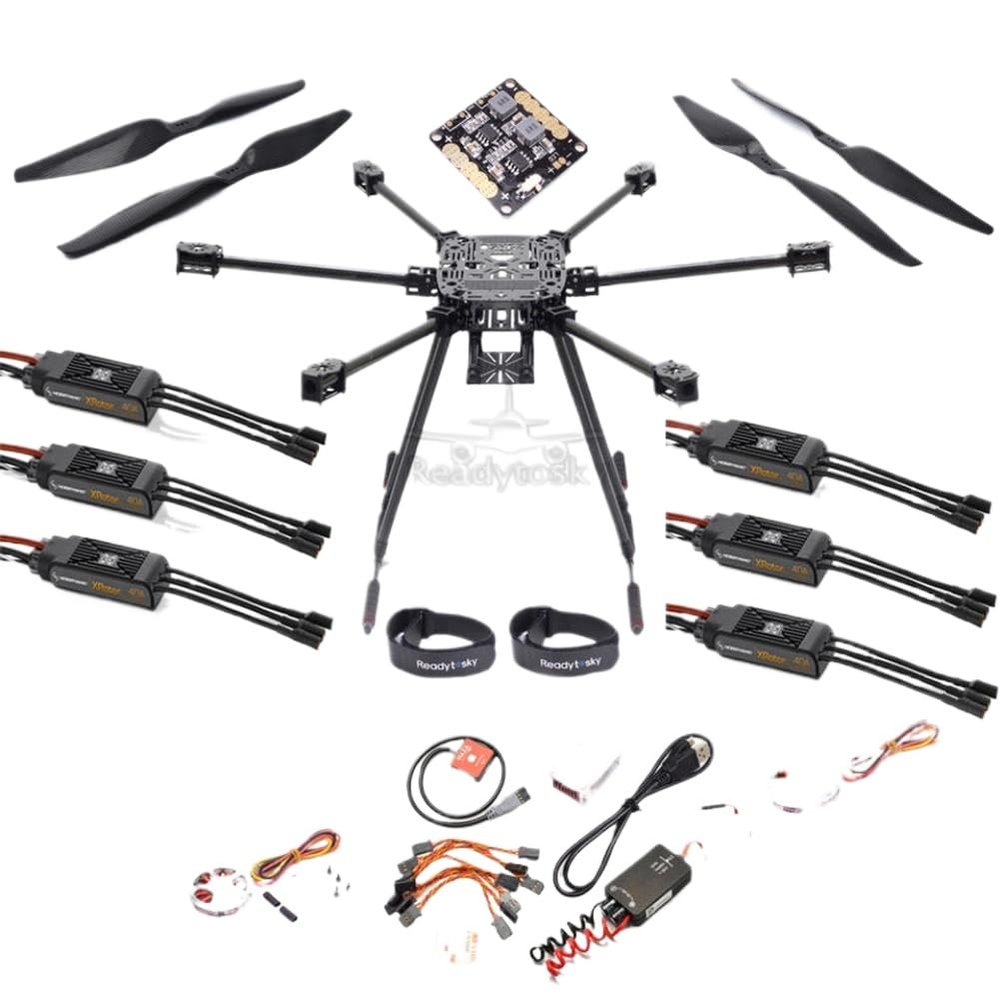

Full Carbon Fiber Hexa-Rotor Frame Kit With APM2.8 Pixhawk 2.4.8 Flight Control 5010 750KV Motor And X-roter Pro 40A ESC Set(with Naza FC set)

Description

• Model ZD850 designed for compatibility with APM2.8 and Pixhawk 2.4.8 flight controllers integration with popular autopilot systems
• Full carbon fiber construction provides strength-to-weight ratio ideal for aerial photography and professional drone applications
• 850mm hexa-rotor frame offers enhanced stability and lift capacity suitable for heavy payloads and extended flight missions
• Equipped with 5010 750KV brushless motors delivering consistent power output for smooth performance in various flying conditions
• Complete set includes X-roter Pro 40A ESCs enabling precise motor control and synchronization within multirotor configurations

ZD850 Full Carbon Fiber 850mm Hexa-Rotor Frame APM2.8 / Pixhawk 2.4.8 Flight Control 5010 750KV Motor X-roter Pro 40A ESC Set Diagonal wheelbase: 850mm Weight: about 1210g Material: full carbon fiber Frame type: hexa-rotor with foldable landing gear The ZD850 frame is constructed entirely from carbon fiber, providing structural rigidity and lightweight performance.The kit includes a full set of components for multirotor assembly.Flight controller options include APM 2.8.0, featuring a 32-bit ARM Cortex-M4 processor, MUX interface supporting UART, I2C, and OSD, power supplied via LP2985-3.3 regulator with 16V maximum input, and equipped with a 47uF tantalum capacitor to enhance stability.Alternatively, the Pixhawk PX4 Autopilot 2.4.8 32-bit flight controller is included in some configurations.It features a 168MHz STM32F427 Cortex-M4 main processor with hardware floating-point unit, 2MB flash, 256KB RAM, and a backup STM32F103 coprocessor.Integrated sensors include L3GD20 gyroscope, LSM303D accelerometer/magnetometer, MPU6000 IMU, and MS5607 barometer.Supports 14 PWM/servo outputs, multiple communication interfaces (UART, I2C, SPI, CAN), Spektrum and Futaba SBUS compatibility, PPM and RSSI inputs, SD card logging, multicolor LED, and buzzer interface.Includes redundant power input and automatic failover capability.Naza-M Lite flight control system includes integrated damping, 3- gyroscope, 3- accelerometer, barometer, GPS module, LED indicator, PMU power module, and mounting holder.Designed for altitude hold, attitude stabilization, and autopilot functions.Motor specifications: 5010 size, 750KV, 80g weight, 4mm shaft diameter, compatible with 2-6S LiPo batteries.Electronic Speed Controllers: X-Rotor Pro 40A, supports 3-6S LiPo, continuous current 40A, peak current 60A, includes 16AWG input and output wiring, 3.5mm female connectors on motor outputs.Features throttle range calibration, DEO, timing adjustment, and stick programming.Included components may vary by configuration: - ZD850 full carbon fiber hexacopter frame (unassembled) - Carbon fiber landing gear with random color landing protection foam (red or green) - 5010 750KV brushless motor x 6 - X-Rotor Pro 40A ESC x 6 - Choice of flight controller: APM 2.8.0 (with or without compass), Naza-M Lite, or Pixhawk 2.4.8 - GPS module (M8N) with black holder - Power distribution board (5V/12V PDB) - XT60 connector - strap x 2 - 1555 carbon fiber propellers x 3 pairs - Additional accessories such as shock absorber, servo motors x 5, telemetry module, OSD, buzzer, button, I2C splitter, PPM module, 4G TF card with preloaded firmware, and OLED display depending on selected package
