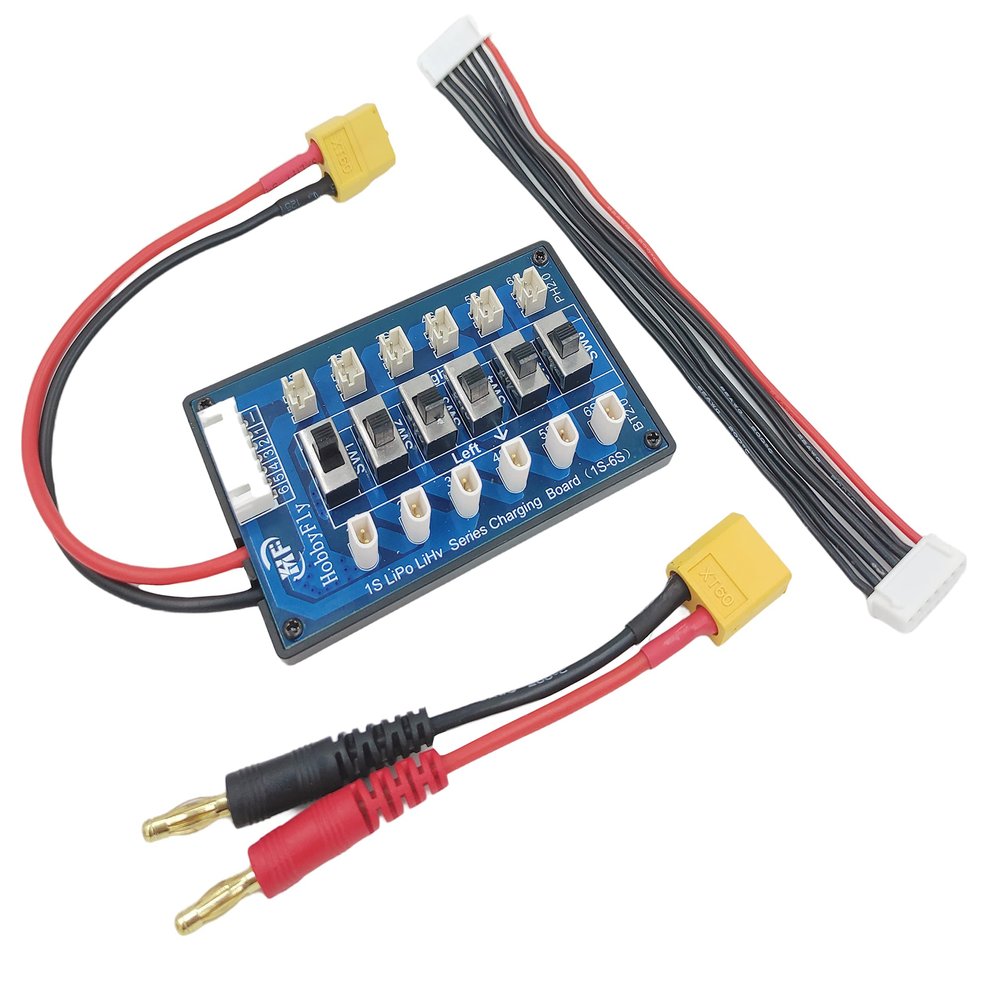

HobbyFly 1s Betafpv Bt2.0 Ph2.0 Lipo Battery Series Charging Board Parallel Charger Board Blade Inductrix Ultra Micro JST-PH Connector mCX mCPX for Lipo Balance Charger for Tiny Whoop

Description

• This board is for betafpv bt2.0 and ph2.0 battery charging.New design charging solution for 1S lipo series charging board ,better than the parallel board;max charge current up to 4A
• This board is without voltage deviaion limit between batteries;but the parallel board has voltage deviation limitedless than 0.1V deviation between batteries
• This board is more safety with series connection and better storage your batteries at the same time;You can monitor the status of each battery.
• It can charge battery from one piece to 6 pieces at the same time only swtich the switches per your batteries quanlity.
• It has two type main charge plugs to meet almost lipo balance chargers(Banana connetor and XT60 connector).

This is the new design solution for Betafpv Bt2.0 and Ph2.0 battery 1S lipo/li-ion/LiHv/Life charging board with Series connection ,not the parallel charging board. The principle is that this series charging board makes the batteries as one battery series pack.You can monitor each battery status during charging.
As you know,the parallel charging board has the voltage deviation limited and safety problem.For parallel charging board,if the voltage deviation between batteries is high than 0.1V,so you can't charge them at the same time due to the safe problem.And In parallel charging, if one of your batteries has problem or short circuit,then it will affect and do harm to others .But it has not the problem using series board.Also you can storage your batteries at the same time.So this Series charging board is better and more safety.
Charging Use Guidline: Set up the switches per the attached table of product description.
Specification:
Item name: 1S lipo series charging board
Battery connector: Original BT2.0 and PH2.0mm
Max charge current up to 4A;
Charge cable:Female XT60 16AWG silicone cable and 4.0mm Banana plug to Male XT60 cable
Balance cable:6S 22awg silicone
length:150mm Weight:80g/2.82oz Dimesion:67*27*15mm
Package list:
1 * 1S BT2.0/PH2.0 series charging board
1 * 6s Silicon balance cable
1 * 4.0mm banana plug to XT60 Male cable
