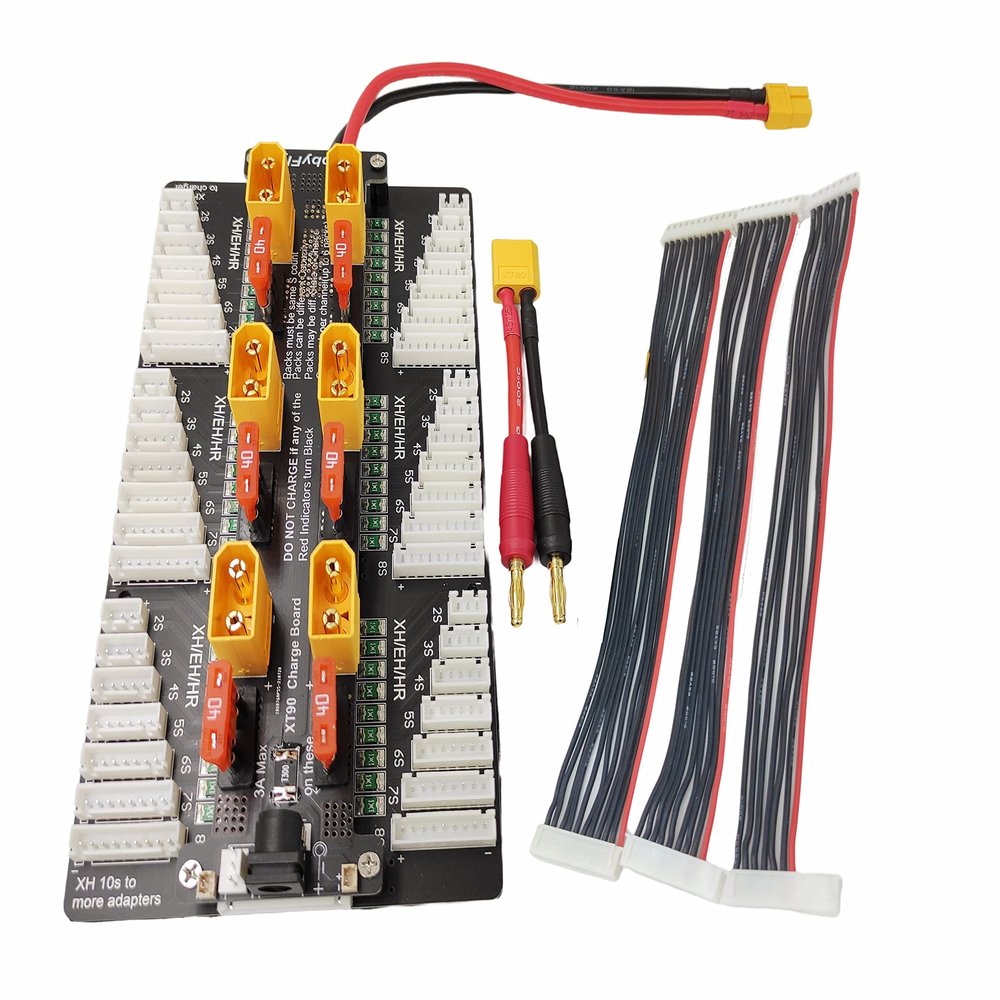

HobbyFly XT90 Charging Board RC Lipo Parallel Charging Board Lipo Battery Charger 2S-8S Parallel Balanced Charging Adapter Plate XT90 Plug for icharger 308duo 4010duo

Description

• XT90 2-8S parallel charging board Support 6 packs 2S Lipo Battery, 6 packs 3S Lipo Battery, 6 packs 4S Lipo Battery, 6 packs 5S Lipo Battery, 6 packs 6S Lipo Battery,6 packs 7S Lipo Battery,6 packs 8S Lipo Battery
• Balanced port output line with 22AWG multi-strand silicone line.
• Thicken PCB copper foil, allow security using 40A charging current.Equipped with 40A fuse between any two groups of batteries, to prevent line burned due to the large battery pressure.
• There is 1.1A PTC fuse of each balance channel for safety..It can used with 6S,8S,10S balance chargers of XT60 main charge port or Banana port.
• Fuse bracket new designIf fuse brokenit can be replace with a new one easily

2-8s XT90 Parallel charging board:It can used with 6S,8S,10S balance chargers of XT60 main charge port or Banana port.
Battery connector:Xt90
Size:XT90 2S-8S

Description:

Item: Parallel Charging Board

Plug: XT90

Balance Output Cable: 22AWG silicon cable

Connect to Charger port: XT60 or Banana plug
Current: Support MAX. 40A charge current

Balance Cable:8S or 10S Balance Lead

Support 6 packs 2S Lipo Battery, 6 packs 3S Lipo Battery, 6 packs 4S Lipo Battery, 6 packs 5S Lipo Battery, 6 packs 6S Lipo Battery,6 packs 7S Lipo Battery,6 packs 8S Lipo Battery

Features:

1. Supports up to six packs of the same type, same cells 2-8S battery pack.

2. Balanced port output line with 22AWG multi-strand silicone line.

3. Equipped with safety protection 40A max fuse for each channel.

4. High-quality gold-plated connectors.

5. Thicken PCB copper foil, allow security using 40A charging current

6. Equipped with 40A fuse between any two groups of batteries, to prevent line burned due to the large battery pressure.

7. 1.1A PTC fuses of each balance circuit for safety

Package Included:
1X 2-8S Parallel Charging Board
1X 8S Balance Cable
1X 10S Balance Cable
1X 6S Balance Cable
1X XT60 Male to Banana plug charge Cable

Note:This is a parallet charging board not a charger, please make sure your lipo charger can connect with this xt90 parallel charging board before purchasing.

If you have any problem about this rc products,pls kindly contact us by email, we will reply you within 24 hours,thank you.
