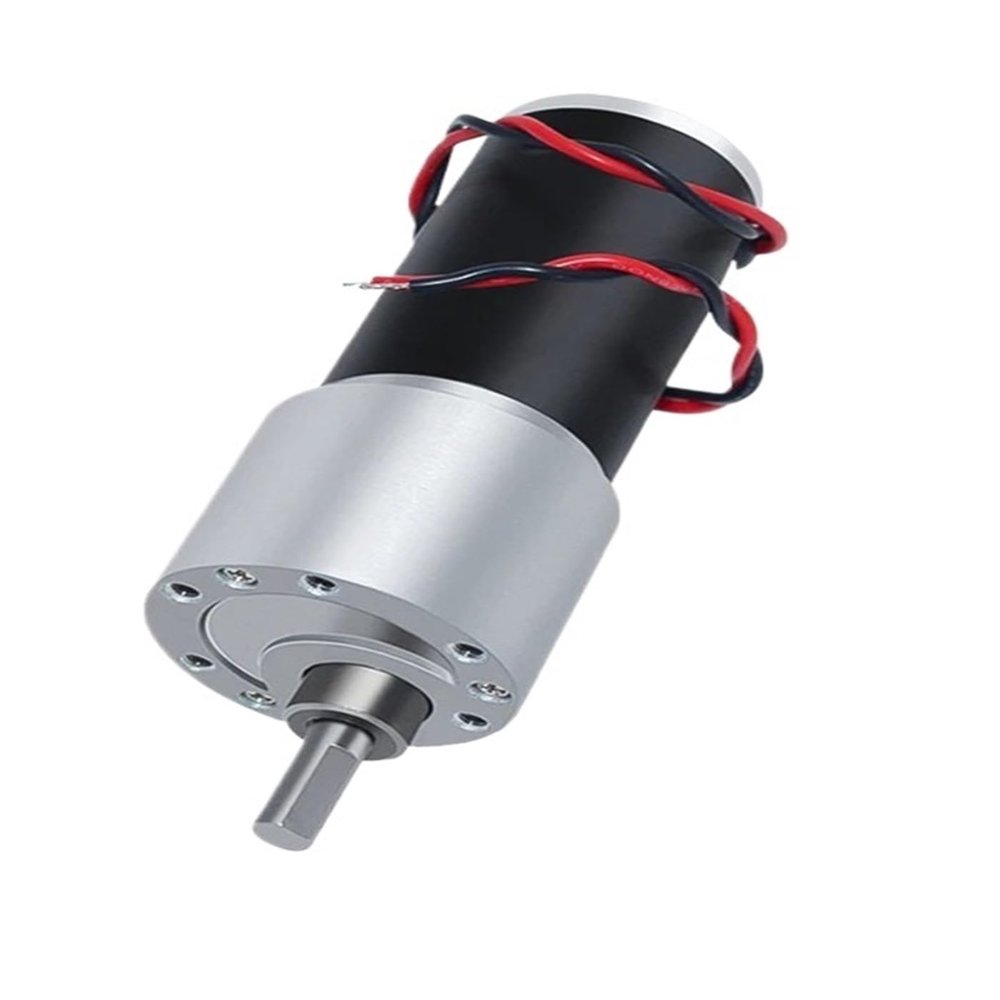

JGB37-31ZY DC 12V24V Geared Motor 10RPM-1270RPM Reduction Gear Motor Large Torque High Power 3157 Brush Motor Reversed Motor(1270RPM_DC 12V)

Description

• Electric Motors
• Motor

Electric Motors
Product Packaging:
Package A: 1pcs Motor
Package B: 1pcs Motor + Bracket
Package C: 1pcs Motor + Speed Controller
Package D: 1pcs Motor + Bracket + Speed Controller
Package E: 1pcs Motor + Bracket + Speed Controller + Power Supply
Package F: 1pcs Motor + Bracket + Power Supply
Package G: 1pcs Motor + Power Supply
Package H: 1pcs Motor + Bracket + Power Supply
Product Parameters:
1. Rated voltage: DC12V / DC24V
2. No-load speed: 10 - 1270rpm
3. Load speed: 8 - 1047rpm
4. no-load current: 0.33A (DC12V) / 0.15A (DC24V)
5. Load current: 1.4A (DC12V) / 0.7A (DC24V)
6. Load power: 16.8W
7. Load torque: 0.8 - 40kg.cm (40kg.cm at 10rpm; 0.8kg.cm at 1270rpm; the lower the speed, the higher the torque)
The value of L in the dimensions of the motors shown below corresponds to the length of the different reduction ratios:
No-load speed: 10-20rpm; L size: 29mm
No-load speed: 30-61rpm; L size: 26.5mm
No-load speed: 89-143rpm; L size: 24mm
No-load speed: 267-421rpm; L size: 22mm
No-load speed: 800-1270rpm; L size: 19mm
Hign-concerned Chemical : None
Torque : 0.8 - 40kg.cm
Usage : Home Appliance
Model Number : JGB37-31ZY Grear Motor
Continuous Current(A) : 1.4A/0.7A
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Totally Enclosed
Commutation : Brush
Output Power : 16.8W
