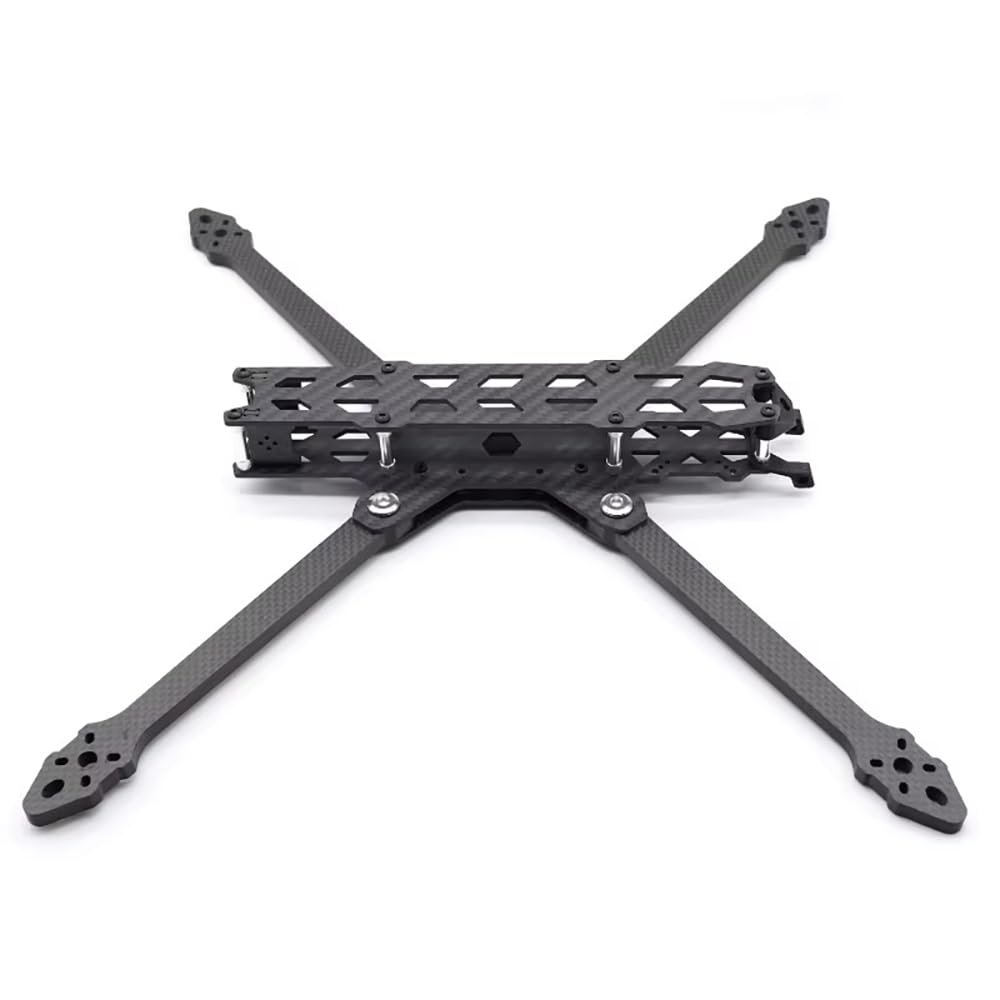

LX10 V2 10inch Fold Carbon Fiber Frame Wheelbase 405mm Thickness Arm 7.0mm for 3115 Motor FPV Super Long Range Drones Parts (1PC LX10 V2)

Description

• Exquisite exterior design, sturdy and durable structure
• Chamfer treatment between the arm and the body, smooth and scratch free
• Lower center of gravity design,Flight control comes with shock absorbers to reduce flight control pressure

Item: LX10 V2 10inch Traversing Drones Frame
Parameters:
Frame: LX10 V2
Frame size: 345 * 308 * 40mm
Folded size: 440 * 93 * 40mm
Wheelbase: 405mm
Arm thickness: 7mm
Bottom plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Upper plate thickness: 2.5mm
Weight: 261g
Motor installation hole spacing: 16 * 19/19 * 19mm
Camera installation spacing: 19mm
Installation height of flying tower: 25mm
Installation hole spacing for flying towers: 30.5 * 30.5mm
Installation height of image transmission: 25mm
Installation hole spacing for image transmission: 20 * 20/25.5 * 25.5/30.5 * 30.5mm
Support blade: 10 inches

Recommendation
Motor: 3115 900KV
Electric adjustment: 4IN1 60A (2-6S)
Flight control: F405 (42688)
Paddle: 1050
Image transmission: 5.8g 1.6W
Camera: RUNCAM Nano2
Receiver: ELRS 915MHz

Package Included:
LX10 V2 10inch Traversing Drones Frame X 1
