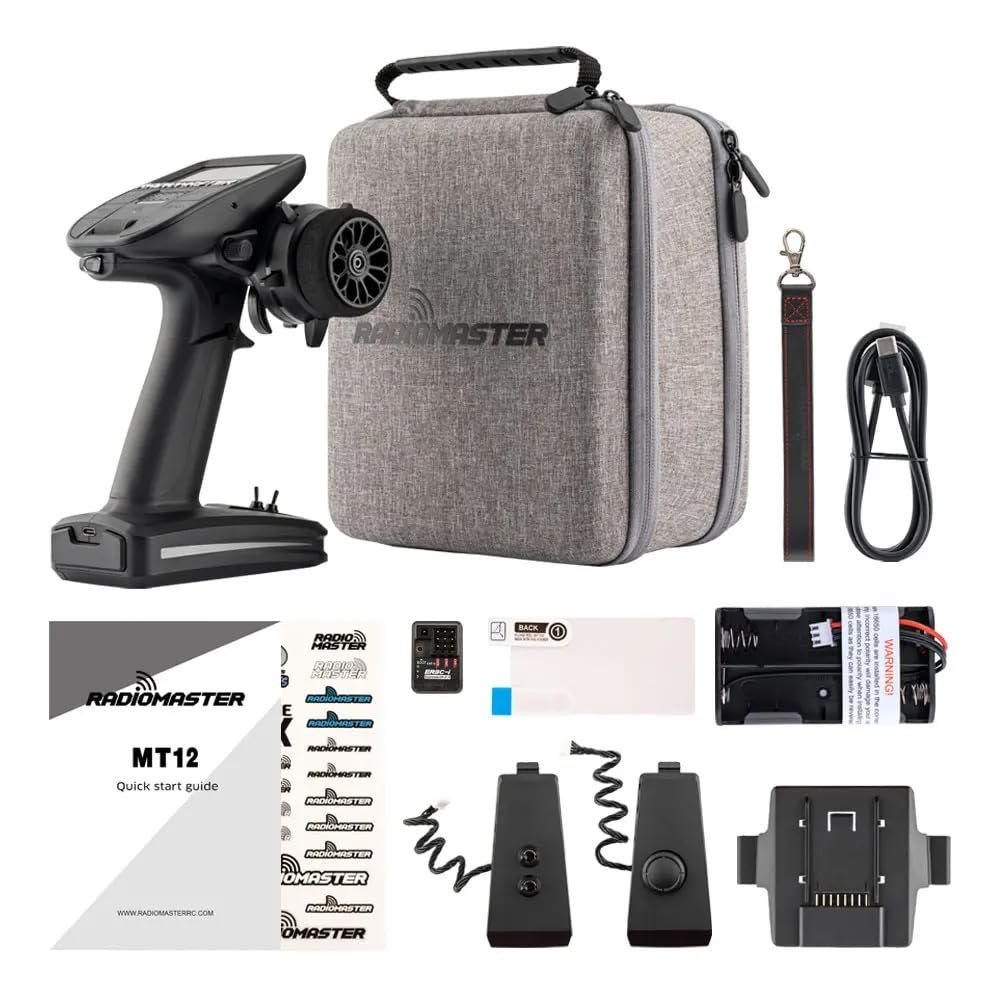

Radiomaster MT12 Surface Radio Controller with Receiver ExpressLRS 2.4G for RC Car Boat(ELRS ER3C-I FCC)

Description

• The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project.
• Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond.
• Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.
• Available with built-in ExpressLRS MPM RF modules.Featuring a powerful STM32F407VGT6 with 1MB Flash.Preinstalled EdgeTX firmware.QC3.0 fast charging supporting 2.0A MAX.
• Compact design with excellent ergonomics.Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included).Standard Nano module.compartment.RadioMaster standardized button layout.Rotatable antenna.Customizable base switches or 4 way joystick included.

Specification MT12

Item: MT12 Surface Radio

Physical dimensions: 177.8*118.4*207.8mm

Weight: 480 grams

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: ELRS 2.4GHz

Operational current: 320mA for ELRS

Operational voltage: DC 6.6-8.4V

Operating system: EdgeTX

Control channels: 16 as standard

Display: 128*64 Monochrome LCD

Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)

Charging: Built in USB-C Charging

Firmware Upgrade method: Via USB or SD card

Wheel and Trigger sensor: Hall-effect

Module bay: Nano size

Specification ER3C-i (Included with ExpressLRS version)

Item: ER3C-i 2.4GHz ELRS PWM Receiver

Power supply: DC 4.5 - 8.4V

Antenna type: Built-in high-sensitivity ceramic antenna

Wireless protocol: ExpressLRS 3.3.0 pre-installed

Output channel: 3CH PWM

Telemetry power: 10mW

Battery voltage detection range: DC 4.0 - 35V

Weight: 4.2 grams

Dimensions: 26.1*18.5*13.0 mm

Firmware: Device Category: Radiomaster 2.4Ghz / Devic
