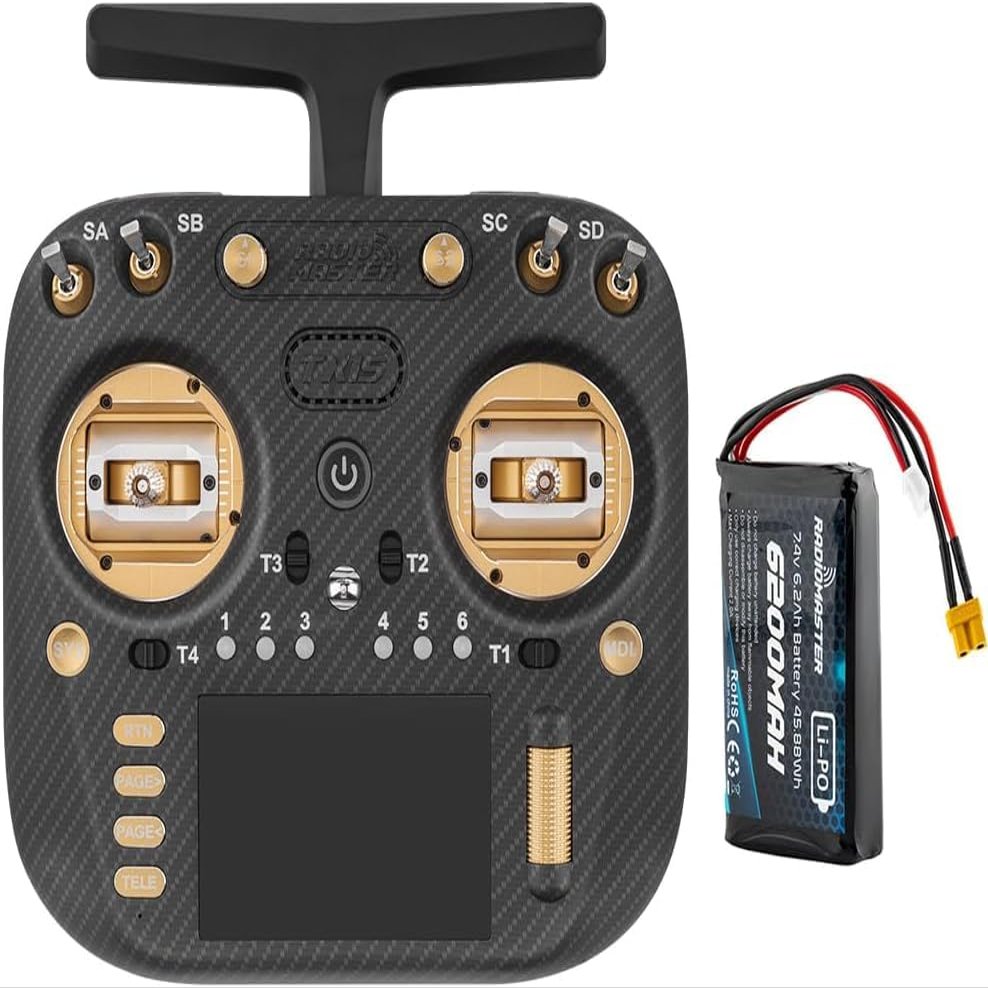

RadioMaster TX15 Max V5.0 ELRS 16CH 2.4G Hall Gimbals ExpressLRS Support OPENTX and EDGETX Remote Control Transmitter for RC Drone Mode 2 (TX15 Max Gold 6200mah)

Description

• TX15 Max 16CH OpenTX and EDGETX Multi-Module Compatible Digital Radio Transmitter for RC Drone
• TX15 Max internal RF system integrates Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink and Graupner HoTT RF chip modules on one board
• The internal RF module of Radio Master will directly support firmware updates from the radio operating system. There is no complicated update process. TX8 comes with Deviation TX software installed as standard
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
• Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

Features

Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.

Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.

Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.

Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.

Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.

Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.

Foldable Antenna: Compact and easy to store without compromising signal strength.

Built-in Microphone: For future feature expansion.

Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

Interchangeable Shoulder Switches: Customize your controls to match your flying style.

Specifications

Item: TX15 Max Radio Controller

Size: 178*168*81mm

Weight: 672g (without battery)

Color: Red/ Black/ Gold

Frequency: 2.400GHz OR Sub-G 900MHz

Internal RF: ELRS 2.4GHz / Sub-G 900MHz

Supported Protocols: Express-LRS

Cooling Fan: Yes

Transmitter Module: Built-in ELRS

Built-in Flash Size: 4GB

Built-in Microphone: Yes (Future expansion)

Built-in Gyro: Yes (ICM-42607-C)

MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)

Antenna Gain: 2dB (transmit power adjustable)

Current: 875mA at max power output

Voltage Range: 6.6 - 8.4V DC

Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)

Module Firmware: ExpressLRS

Channels: Max 16 channels (Receiver dependent)

Display: 3.5-inch IPS touchscreen (480 x 320 resolution)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

Connectivity: USB-C

Gimbals: AG02 CNC Hall sensor gimbals

Gimbal Sticks: M4

Upgrade Method: USB-C (UF2)

Module Bay: JR-compatible module bay for additional modules
