Replacement Part For TS832 RC832 5.8G 600mW 40Channels AV Transmitter Receiver Module For FPV Multicopters - (Color: TS832 RC832)

Description

• Color: TS832 RC832
• Material: Composite Material
• Upgrade Parts/Accessories: Transmitters
• RC Parts & Accs: Transmitters
• Use: Vehicles & Remote Control Toys

Item Description:
Description:

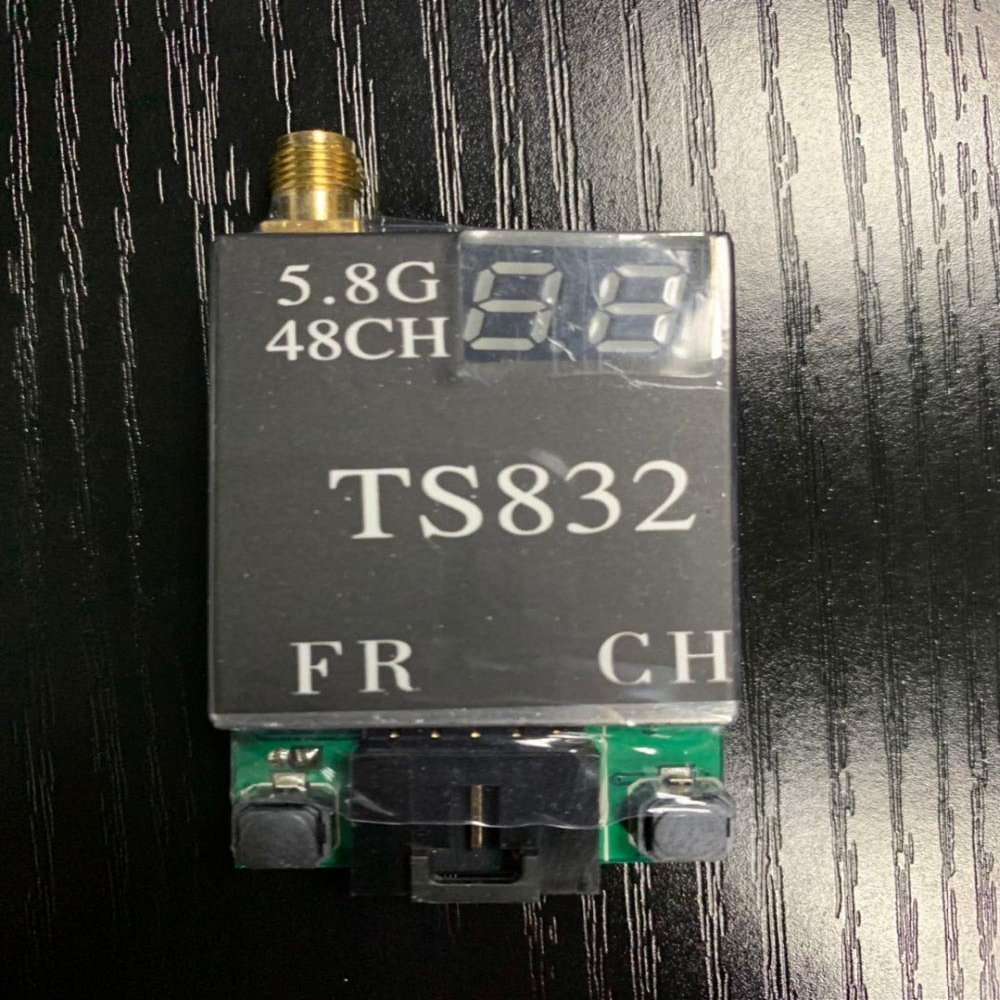

TS832:
Item Name: TS832 transmitter
Frequency: 5.8G
Power input: 7.4-16V (3S Lipo suggested)
Transmitting Power: 600mAVideo Format: NTSC / PAL AutoAudio Bandwidth : 6.5MVideo Bandwidth: 8MAntenna Gain: 2dbWeight: about 22gWorking Current: 220mA at 12V
Dimension: 54x 32x 10mm(excluding antenna)
Connector: transmitter module side RP-SMA jack, antenna RP-SMA plugRC832:Item Name: RC832 receiver
Antenna Impedance: 50
Antenna Gain: 2db
Video Impedance: 75
Video Format: NTSC/PAL autoPower Input: 12VWorking Current: 200mA maxDimension: 80x 65 x15mm
Weight: about 85g
Connector: receiver module side RP-SMA jack, antenna RP-SMA plugFeatures:
Super small 200mA current for 600mW wireless transmitter power.Compatible with A,B,E and F frequency bandsSmaller size with lighter weight.
32 CH compatible to all FPV 5.8g receivers.
5.8G 600mW 32 Channels AV wireless FPV transmitter
600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna. Package Included:
1 x TS382 transmitter
1 x RC832 receiver
2 x 5.8G 5DB antenna
3 x cable
Item Specification:
Material: Composite Material
Upgrade Parts/Accessories: Transmitters
RC Parts & Accs: Transmitters
Use: Vehicles & te Control Toys
te Control Peripherals/Devices: Transmitters
For Vehicle Type: Airplanes
