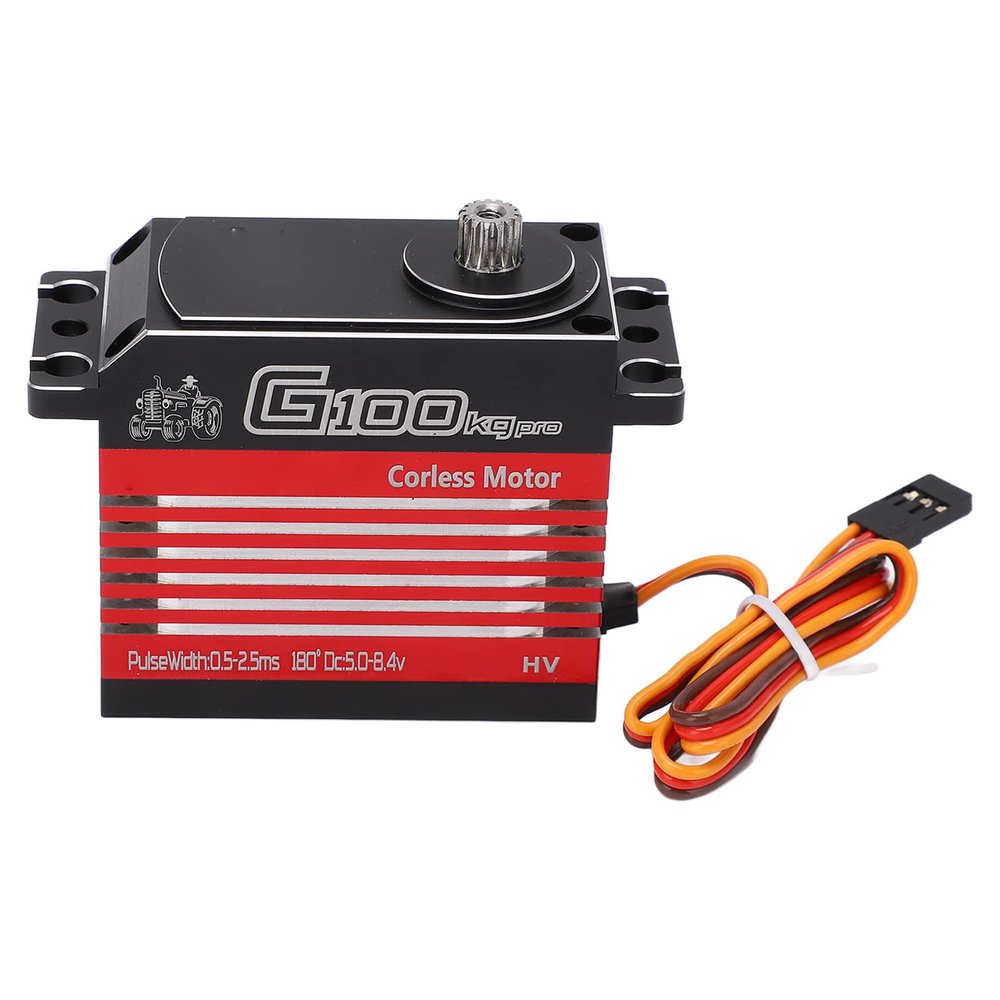

100Kg Rc Digital Servo, High Waterproof Multipurpose Servo Motor for 15 16 Rc Car Robots Rc Boats Car Model Accessory

Description

• function: With anti blocking and anti burning function, with function, fully design, grade IP67, the steering gear can be completely immersed in water.
• Included: Including steering gear kit, spare gear and axle pin, 15t metal steering gear arm.
• Applicable: Suitable for 1/5 1/6 RC car , robots, RC boats, industrial steering gear, helicopters.
• Strong And Sturdy: The built in hollow cup motor has large and longer service life. It is equipped with full CNC accurate gears, which is more wear and not easy to break the teeth.
• Multipurpose: Used to change the , speed and angle of remote control toys, robots, robotic arms and other remote control toys.

Specification:
Item Type: Servo Motor
Shell Material: Aluminum Alloy
Color: Red
Product Size: Approx.59.5 x 29.5 x 54mm / 2.3 x 1.2 x 2.1in (Excluding Cables, Mounting On Both Sides And Top Gear)
Working Voltage: DC 5V-8.4V
Rotation Angle: 180
Number Of Teeth: 15T
Dead Time: 3s
Pulse Width: 500-2500s
Operating Frequency: 1520s/330hz
Motor: High Performance Hollow Cup Motor
Gear: All Steel Teeth
Potentiometer: High Performance Potentiometer
Test Data
Speed (6V): 0.14S/60
Speed (7.4V): 0.12S/60
Speed (8.4V): 0.11S/60
Stall (6V): 88kg Cm
Stall (7.4V): 95kg Cm
Stall (8.4V): 102kg Cm
Connection Line: JR Line 300mm

How to Use:
1.Installthesteeringgeartothesteeringgearbasefirst,withoutinstallingthesteeringgeararmorsteeringgearprotection.Onlyfixtheservostoframe.Thenconnecttheservotothereceiver,usuallytheCH1orSTsocket.
2.Aftertheservoisfixed,turnontheremotecontrol,turnontheESCaftersetting,andthentheservowillstopatafixedposition
3.Withoutturningofftheremotecontrolandthesteeringgear,installthesteeringgearprotectionorthesteeringgeararmtotheoutputgearofthesteeringgear.

Package List:
1 x Servo
1 x Servo Arm
2 x Gear
2 x
4 x Rubber Pad
6 x Screw
