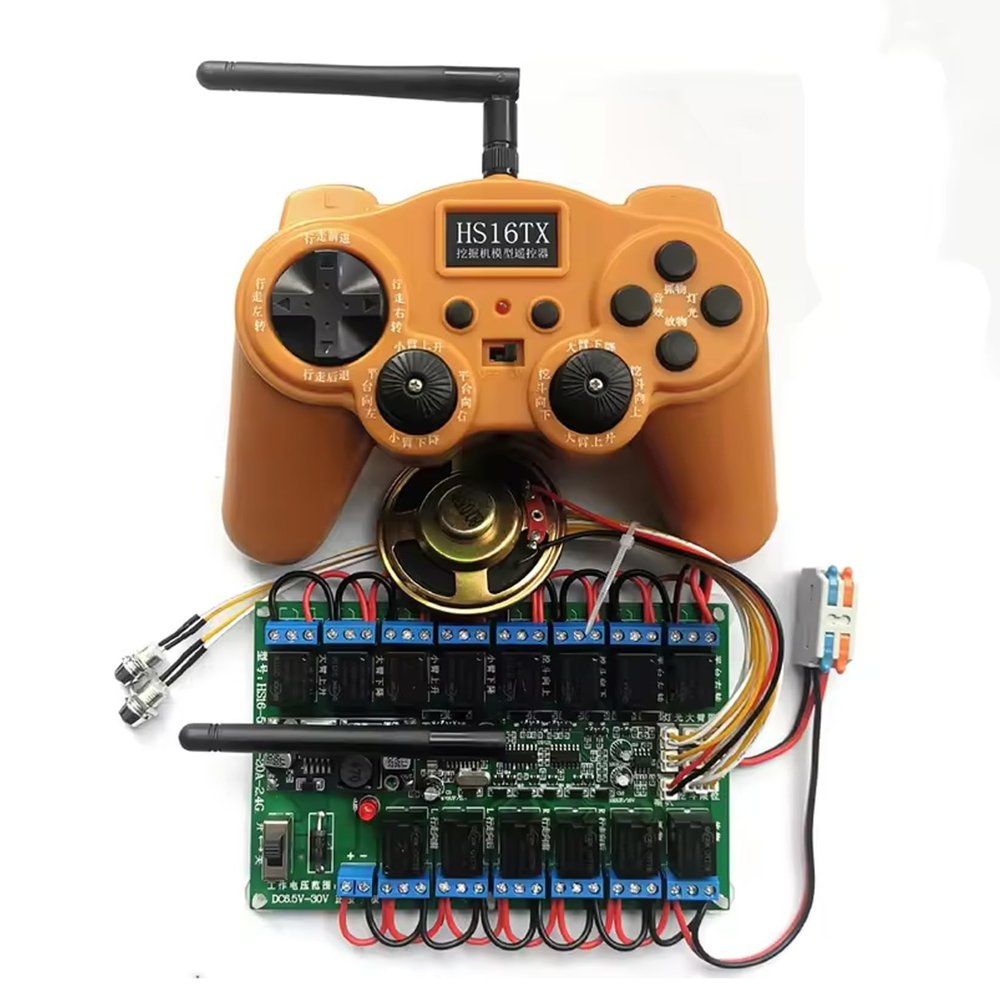

yuenhoang 16CH 2.4G Remote Controller Kit 12V 20A Receiver Board for RC Excavator DIY Toys Robot Vehicle Wireless Transmitting Receive (Yellow 20A Full kit)

Description

• Please read the product description details carefully. You must have basic operating skills before using the product to avoid damage or malfunctions
• Used for DIY remote-controlled excavator models
• Item name: remote controller kit / transmitter receiver kit, Item type: 16CH 2.4GHZ
• This 16 channel remote control receiver board adopts a 2.4G high-frequency simple automatic frequency matching mode, with one-on-one remote control operation, and can also be operated simultaneously by multiple sets. The signal is stable and will not interfere with each other
• Equipped with lighting and sound effects, controller with 20A receiver board capable of controlling 7 DC brush motors in forward and reverse directions, or 14 solenoid valves for on/off operation.
• The positive and negative poles of the remote control and receiving board power supply cannot be reversed
• All electronic components on the receiving board are exposed, and safety measures such as insulation, waterproofing, and corrosion prevention should be taken during installation to avoid short circuit damage caused by improper use.

DC 2.8-4.2V 16 Channels 2.4GHZ Remote Control 12V 20A Receiver Board with Lighting Sound Effects for Model Cars DIY Acccessories

Application description:
- This 16 channel remote control receiver board adopts a 2.4G high-frequency simple automatic frequency matching mode, with one-on-one remote control operation, and can also be operated simultaneously by multiple sets. The signal is stable and will not interfere with each other
- Equipped with lighting and sound effects, capable of controlling 7 DC brush motors in forward and reverse directions, or 14 solenoid valves for on/off operation.
- Used for DIY remote-controlled excavator models

Product parameters
- Item name: remote controller kit / transmitter receiver kit
- Item type: 16CH 2.4GHZ
- Remote controller: 2pcs AA battery (not include)
- Remote control working voltage: DC2.8-4.2V, 2pcs AA battery (not include)
- Receiver board working voltage: DC7V~28V
- Remote control standby power consumption: 14ma
- Receiver board standby power consumption: 25-80ma
- Receiver board load power: When working at 12V voltage, the maximum load power of the relay is 200W, the maximum load current is 20A, the maximum load power for continuous use is within 100W, the continuous load current should not exceed 10A. When the working voltage is above 14V, the maximum load power of the relay is 100W, the maximum load current is 10A, and the maximum load power for continuous use is within 50W. The continuous load current should not exceed 5A
- Remote control frequency: 2.4GHz
- Remote control distance: Approximately 50 meters measured on spacious ground
- Weight: Remote control 145g; Receiver 225g

2 types for your refer:
- black full kit: 1pcs black remote controller + 1pcs receiver
- yellow full kit: 1pcs yellow remote controller + 1pcs receiver

Automatic frequency matching instructions:
1. Install 2pcs AA batteries on the remote control and turn on the power switch. At this time, the red indicator light on the remote control keeps flashing, indicating that the signal is waiting to be connected. Then turn on the receiver board switch and turn on the power. The speaker emits a "dididi" sound and starts the sound effect sound. At the same time, pay attention to the indicator light on the remote control flashing twice before turning off, indicating successful frequency matching.

2. This 16 channel remote control and any receiving board can be matched with each other for frequency matching. After successful frequency matching, the remote control and receiving board can achieve one-on-one remote control operation; If multiple sets of remote control operations are required at the same time, turn off all remote control receiving boards and assign them to multiple groups before use, sort them by group number, and then turn on the power and frequency matching in sequence for each group, so that multiple sets can be used simultaneously without interfering with each other.

3. When using multiple sets at the same time, do not turn on or off the machine casually, because every time you restart it, it will automatically align with the frequency again to avoid cross frequency with other remote controls; If the receiving board is damaged, a single receiving board can be matched with the original remote control for frequency matching, which can achieve matching multiple receiving boards with one remote control or multiple remote controls with multiple receiving boards.
